Overview

If your game studio operates an identity provider that follows the traditional OAuth 2.0 Authorization code flow that is used for websites, you can configure the identity provider to log your players into the mod.io using your OAuth implementation.

Unlike the in-game authentication flow which relies on stateless OpenID tokens, logging into the mod.io website using your identity provider involves mod.io redirecting players to your website to login to your identity provider with their credentials. On success, the player is then redirected back to mod.io to be logged in. See Authentication Process for a detailed explanation of the steps involved.

info

This website-based flow, combined with our in-game OpenID flow are intended to compliment each other to achieve account linking regardless of if your players first interact with mod.io in-game or via our website. If your implementation uses one of these flows, we recommend supporting the other for full account-linking coverage to prevent the possibility of duplicate accounts being created.

Glossary

• Client Credentials: The OAuth Client ID and secret generated by your identity provider for mod.io.
• Authorize URL: The registered endpoint that mod.io will redirect users to sign in to your identity provider.
• Token URL: The registered endpoint that mod.io will supply a code to in exchange for an access token.
• UserInfo Endpoint URL: The registered endpoint mod.io will call with a users access token to retrieve account information such as a display name and avatar.
• Studio Access Token: An OAuth 2.0 access token, generated by your identity provider for mod.io on behalf of a user, to call your protected APIs.

Use cases

• mod.io Website: Logging users into mod.io using your identity provider credentials.
• Embed Hub: Logging users into your Embed Hub using your identity provider credentials. Whilst supported, we strongly recommend your website issuing an OpenID token for the authenticated user on your website, and then sharing the OpenID token with our Embed Hub.

Prerequisites

To use our website identity provider login, you must satisfy the following criteria:

• Host an identity provider that implements the OAuth 2.0 Authorization Code Flow.
• The ability for your identity provider to create an OAuth client for mod.io for client_credentials grant type requests.

Authentication Process

1. A prompt is displayed on mod.io to sign into your identity provider.
2. mod.io forwards the user to your identity provider login page, as determined by the registered Authorize URL.
3. Upon successful login, your identity provider redirects to the registered redirect URI for the mod.io OAuth Client.
4. mod.io sends the returned code, combined with your registered Client ID + secret to call your identity provider's Token URL endpoint.
5. Your identity provider returns a studio access token and an optional OpenID token for the user.
6. mod.io uses the returned studio access token to fetch the required profile data for a user against the registered User Info URL¹.
7. Your identity provider returns the user display name / avatar (if applicable).
8. The user is logged in and redirected back to the mod.io website.

¹ If 'Use ID Token for User Profile' is enabled, this step is not required.

Configuration

Generating an OAuth Client for mod.io

Prior to configuration on mod.io, your identity provider must create an OAuth client to enable mod.io, using the client_credentials grant type to make calls to your OAuth API.

Required Redirect URI's

Used By	Redirect URI
mod.io Website	https://mod.io/oauth/studio
Embed Hub	https://embed.modhub.io/oauth/studio

OAuth Client Data for mod.io

Once you have generated the OAuth client with generated with at least one redirect_uri shown above configured. mod.io then requires the following fields to be supplied to our dashboard (see below)

• The name of your identity provider
• An icon for your identity provider
• OAuth Client ID
• OAuth Client Secret
• OAuth Scopes
• OAuth Authorize URL Endpoint
• OAuth Token URL Endpoint
• OAuth UserInfo URL Endpoint
• Portal ID Claim (Mapping)

Optional fields

• Display name claim (Mapping)

Setting up your identity provider on the mod.io dashboard

To setup your identity provider follow these steps:

• Go to your game profile on mod.io whilst logged in as a team member
• Click the manage button next to the game you want to setup SSO
• On the left-hand side menu, click 'Studio Authentication'
• Click the + button next to Create new SSO config

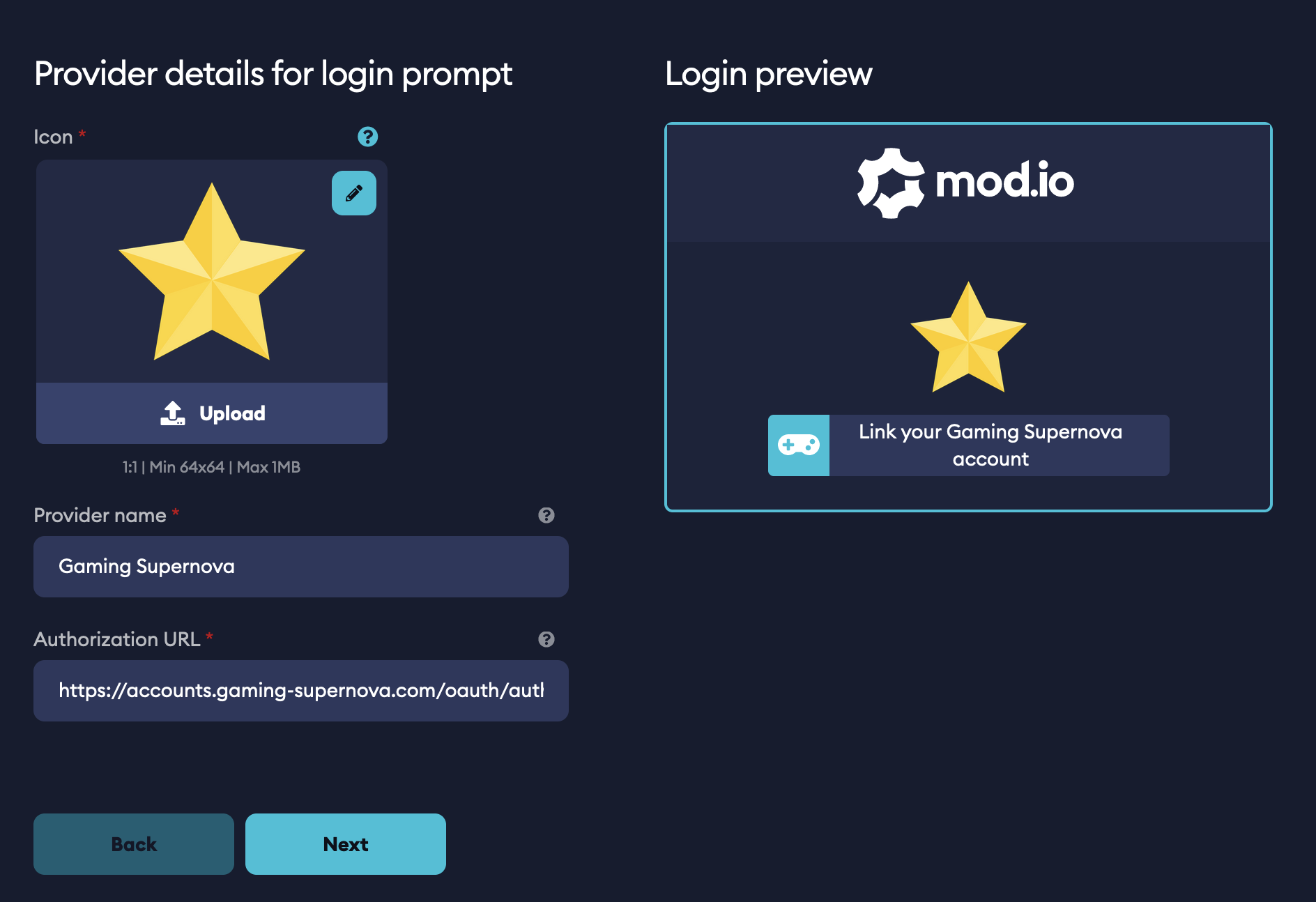

Once the new modal appears, supply the following fields

Field	Purpose
Icon	The icon of your identity provider / web service that your users will be familiar with. This icon will be displayed when users are prompted to login via your web service
Provider Name	The name of your identity provider / web service that your users will be familiar with. This name will be displayed when users are prompted to login via your web service
Authorize URL	The URL mod.io will forward a user to upon clicking Sign in with {your identity provider}. This field should contain no query parameters as any supplied will deliberately be removed. The page this directs to should be your hosted login page where a user is able to log into your identity provider.

View HTTP call mod.io makes to the Authorize URL Endpoint

GET {your-registered-authorize-url-endpoint.com}
    ?client_id={registered-client-id}
    &scope={registered-scopes}
    &redirect_uri=https://mod.io/oauth/studio
    &response_type=code
    &state=c3306a41-b7e4-412f-b78e-7477c79b60b5

The state parameter is generated dynamically by mod.io, your system must forward the supplied state back to mod.io on redirect to prevent man-in-the-middle attacks.

Once completed, click 'Next'.

Field	Purpose
Token URL	The endpoint hosted by your identity provider that mod.io will use to exchange the code returned from your Authorize URL, along with the supplied Client ID, Client Secret + Scopes
User Info	The endpoint hosted by your identity provider that mod.io will use to fetch necessary account data to authenticate the user.
Client ID	The Client ID of the OAuth client generated for mod.io
Client Secret	The Client Secret of the OAuth client generated for mod.io

View HTTP call mod.io makes to the Token URL Endpoint

POST {your-registered-token-endpoint}
Content-Type: application/x-www-form-urlencoded
User-Agent: ModioSSO/1.0

grant_type=authorization_code
&client_id={registered-client-id}
&client_secret={registered-client-secret}
&redirect_uri=https://mod.io/oauth/studio
&code={authorization-code-returned-on-redirect}

View HTTP call mod.io makes to the User Info URL Endpoint (if applicable)

GET {your-registered-user-info-endpoint}
User-Agent: ModioSSO/1.0
Authorization: Bearer {access-token-from-token-endpoint}
Accept: application/json

Once completed, click 'Next'.

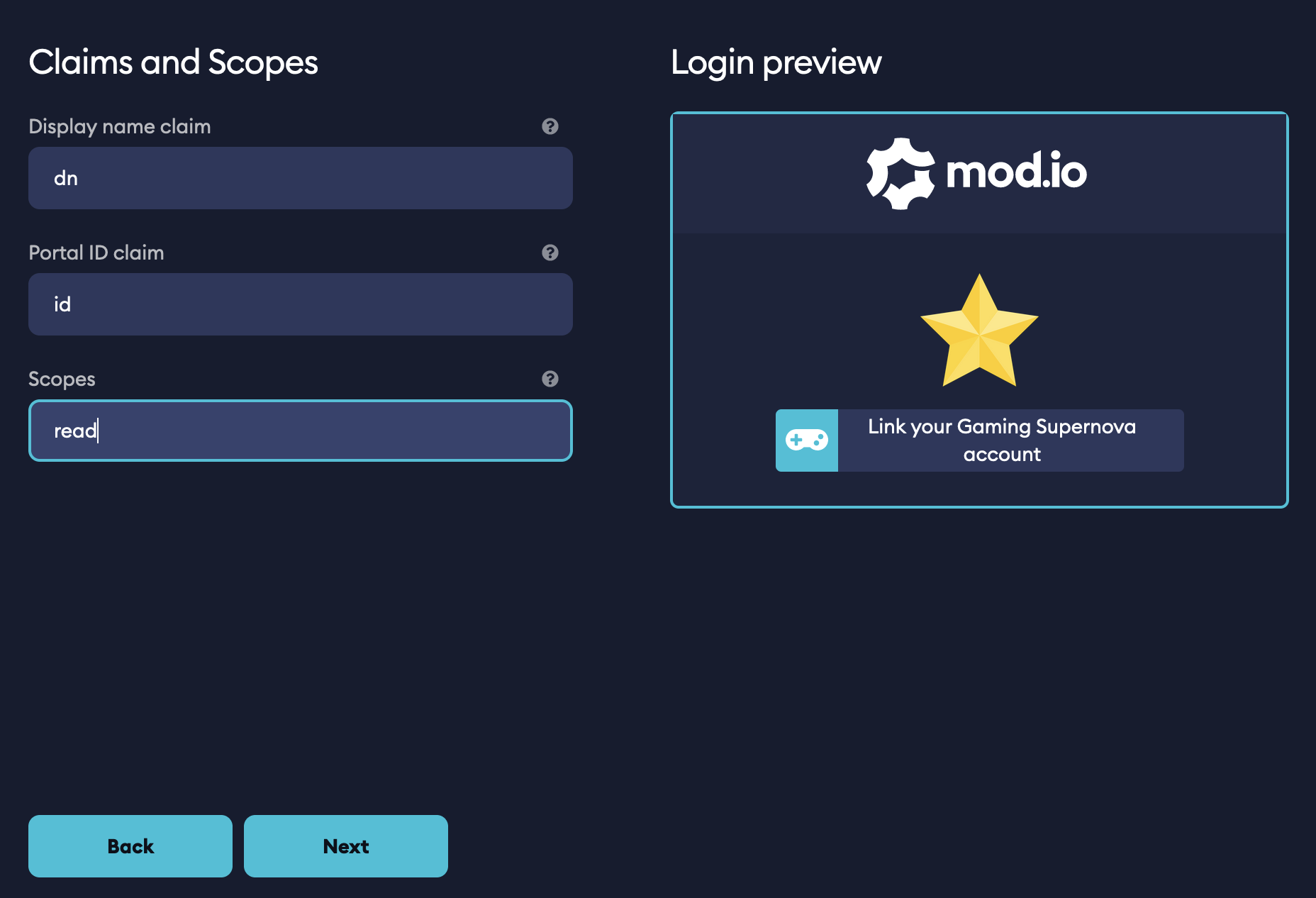

Field	Purpose
Display name claim	Optional. The name of the key in your User Info endpoint response that contains the users display name. Leave blank if you do not wish to transfer the users display name but it is recommended.
Portal ID Claim	The name of the key in your User Info endpoint response that contains the users unique user ID. Note: If you are implementing OpenID authentication, this must be the same value that is returned in the sub claim of the ID Token.
Scopes	The OAuth scopes mod.io will pass to your Token endpoint when requesting a studio access token. These scopes are associated with your identity provider access tokens and not mod.io. At a minimum, you should supply the scope that allows mod.io to fetch the users profile (i.e. read_profile) otherwise authentication requests fail.

Once completed, click 'Next'.

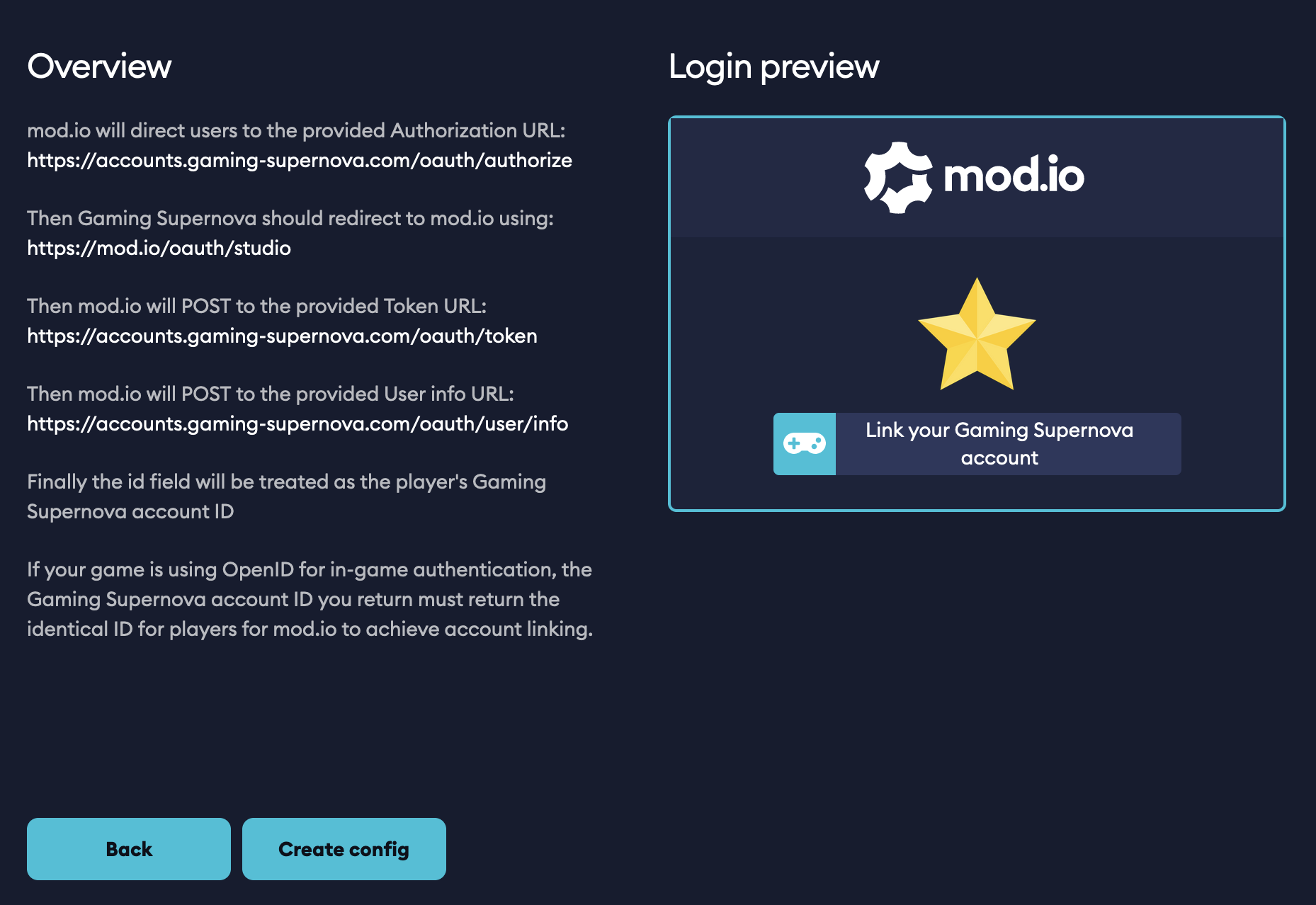

A confirmation page will now display a summary of all the endpoints configured and a high-level overview of how the authentication flow will be handled.

Once everything is correct and ready, click 'Create config'.

Prompting users to login

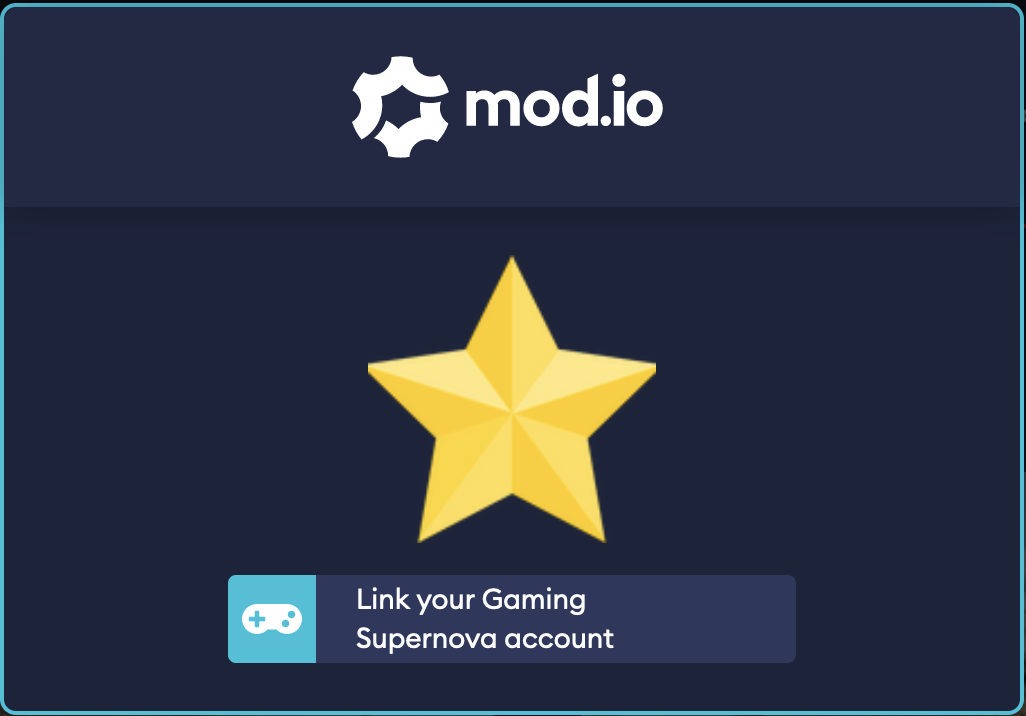

Once your config has been saved, we are now ready to prompt users to log into mod.io using your configured identity provider. There are two ways in-which users are prompted to login:

• Manual: Link to mod.io to your game profile the ?portal=studio query parameter in the URL. i.e. https://mod.io/g/my-game?portal=studio. If a user is directed to this page and already has a linked account with your identity provider, the modal will not be displayed.
• Automatic: When a user attempts to do a write action, such as subscribing to a mod, publishing a mod, rating a mod. The prompt will be displayed if the user does not already have their mod.io account linked to your identity provider.

After a successful login against your identity provider and a redirect back to mod.io, the user is then logged into mod.io with a mod.io account, with a 'link' now existing between their base mod.io account and your identity platform.

info

mod.io will soon allow the automated functionality listed above only to be triggered via a manual check on the config dashboard above. In the meantime if you wish to not have the user prompted on write actions, you will need to remove your config from your game.

Unlinking a mod.io account from your identity provider

Player-initiated unlinking

mod.io users will have the option at any time to remove the link between their mod.io account and your identity provider. A player can remove an account link by doing the following:

1. While logged in, clicking their avatar in the bottom left-hand corner.
2. Click 'General Settings' from the menu that slides out.
3. Click 'Linked Accounts' from the menu on the left-hand side.

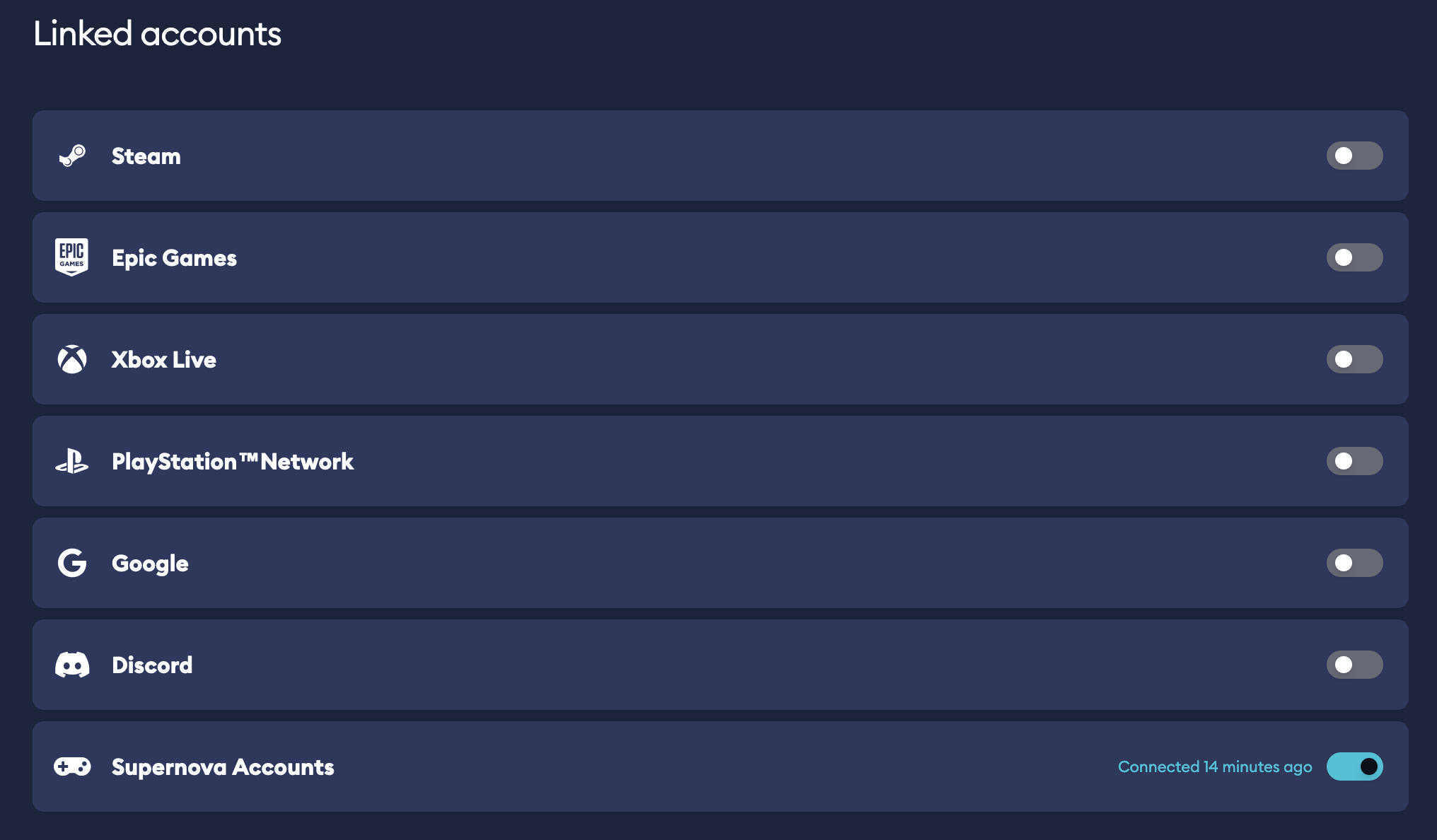

The user will then be shown all first party portals, such as Steam, Xbox Live, etc - as well as any connected identity providers by registered games on mod.io.

Once an account link to a identity provider belonging to a game has been unlinked, they cannot be reconnected via this dashboard. Instead, users must then re-link their mod.io account to your identity provide via the prompt options above.

Studio-initiated unlinking

There may be instances where a studio needs to programmatically remove the link between a players mod.io account and your identity provider, such as when a player requests an account deletion. In such cases, it's crucial to integrate our S2S (Service to Service) API into your automated processes to ensure the removal of orphaned identity provider connections associated with mod.io accounts. Please refer to the endpoint below for S2S-facilitated connection removal to which you must use S2S Authentication to accomplish.

Request

DELETE https://g-{your-game-id}.modapi.io/v1/s2s/connections/{identity-provider-id}

Headers

Header	Type	Required	Description
Authorization	string	true	The valid service token created with your OAuth Credentials.

Path Parameters

Parameter	Type	Required	Description
identity-provider-id	string	true	The unique ID of the player as understood by your identity provider, this should be the same field that is supplied to us in the sub claim for OIDC authentication, and the ID field for web-based OAuth 2 authentication. As an example, if your identity provider uses UUID's for player ID's, and those values are what is shared with mod.io via your implementation, then mod.io expects the same value to this endpoint.

POST https://g-{your-game-id}.modapi.io/v1/s2s/connections/{identity-provider-id} HTTP/1.1
Content-Type: application/x-www-form-urlencoded
Accept: application/json
Authorization: Bearer {service-token}
Content-Type: application/json

Response

204 No Content

Upon success, to re-establish an account link you must initiate the in-game OpenID or web-based OAuth 2 flow again.

Error Reference

Error Ref	Meaning
11114	The OAuth configuration in your games dashboard has not been completed.
11115	The state parameter returned from the Authorize URL endpoint redirect is invalid
11116	The access_token field returned the Token URL endpoint is either missing, or not in the expected data type (string).
11117	The expires_in field returned the Token URL endpoint is either missing or invalid (non-integer).
11118	The token_type field returned the Token URL endpoint is either missing or not the expected value Bearer (case-insensitive).
11121	The expected field from the User Info URL endpoint which maps to the users ID for your identity provider could not be obtained.
