Cloud Cooking Configuration

To onboard to Cloud Cooking, you need to start with the relevant Cloud Cooking Setup Guides tooling to work with the mod.io infrastructure and Cloud Cooking process. This differs per engine, and we recommend performing these steps and locally validating your engine before configuring Cloud Cooking on mod.io.

The following is a high level overview of the order of operations of the configuration process, explained in more detail throughout this document.

Enabling Cloud Cooking for your game

Once Cloud Cooking has been enabled for your game, you can begin the onboarding process. To begin the onboarding process, navigate to your Game Admin page and select Cloud Cooking from the top navigation bar. Select your game engine from the dropdown, and click Enable Cloud Cooking. This will begin the process of provisioning the infrastructure.

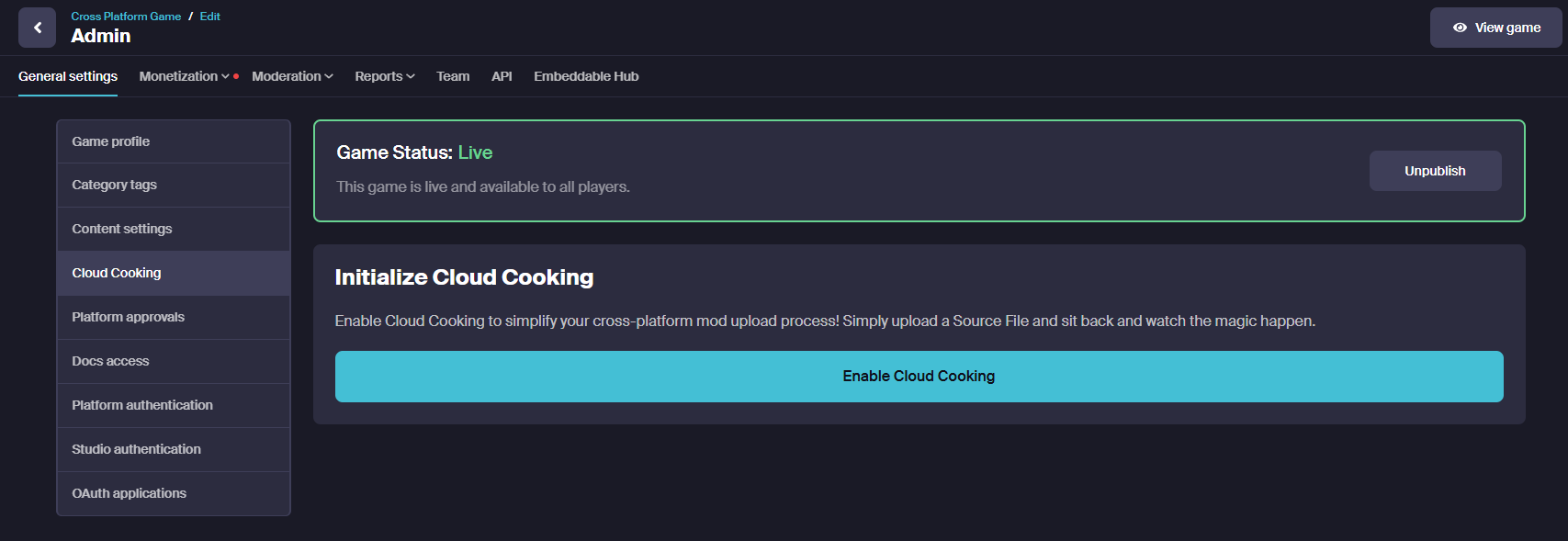

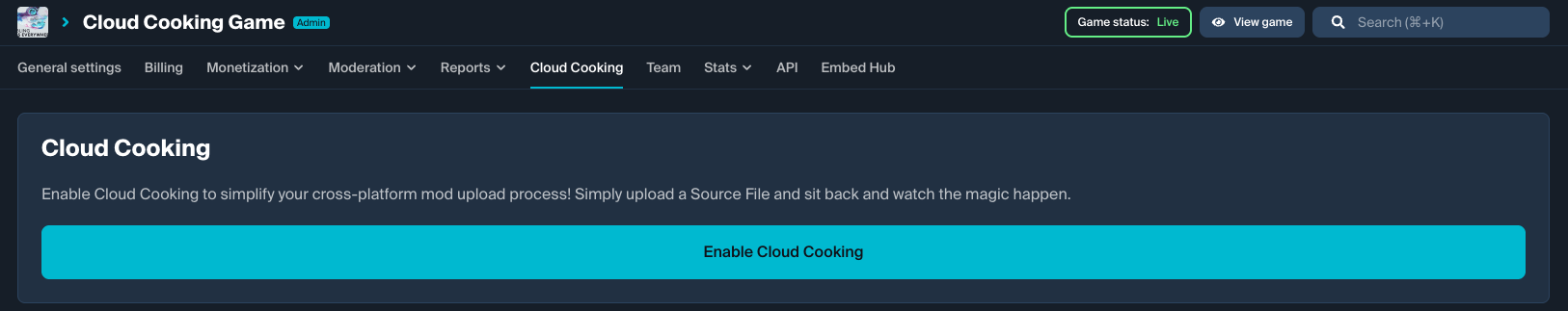

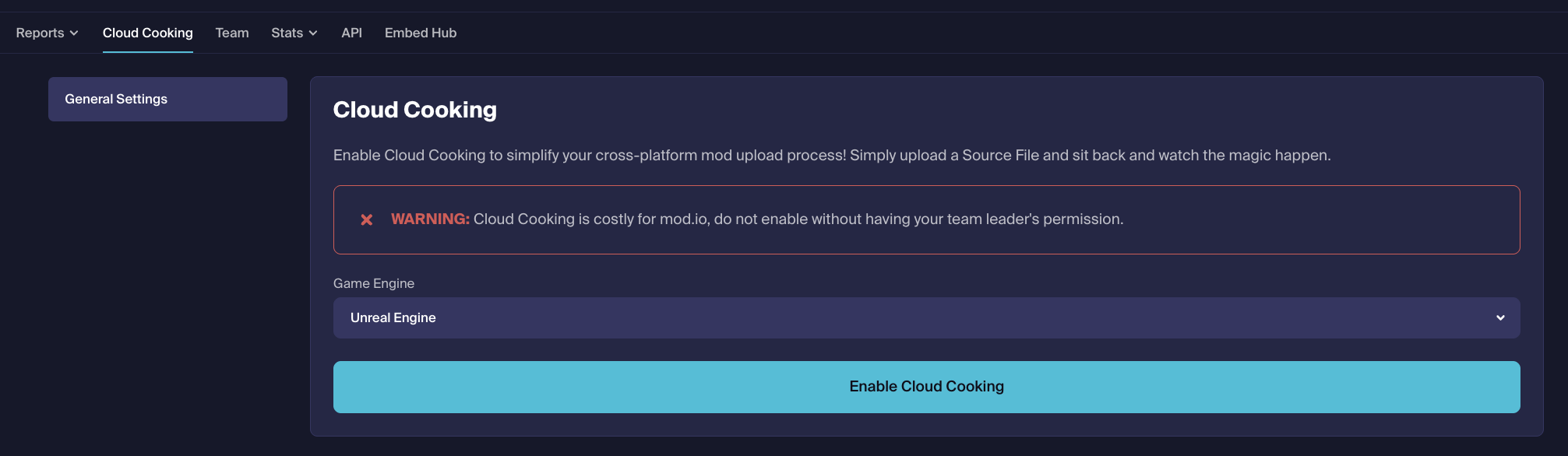

The Cloud Cooking onboarding page, where you select your game engine and enable the service.

note

Depending on your billing agreement with mod.io, you may begin to incur monthly costs as soon as this infrastructure is provisioned.

Provisioning the infrastructure takes a little bit of time. You can check back to this page later for the next step in the process, which is to upload your build. This is a one time step to provision the core infrastructure for your game.

Uploading your build

Once infrastructure has been provisioned, you will be presented with a prompt to upload your build to Azure Storage. This data is used to provision the virtual machine images to run the cook. What you need to provide to mod.io depends on what engine you are using - follow the appropriate game preparation guides for how to prepare your build for this step. The SAS Token provided in this step allows you to connect to the Azure Storage Container to provide your build.

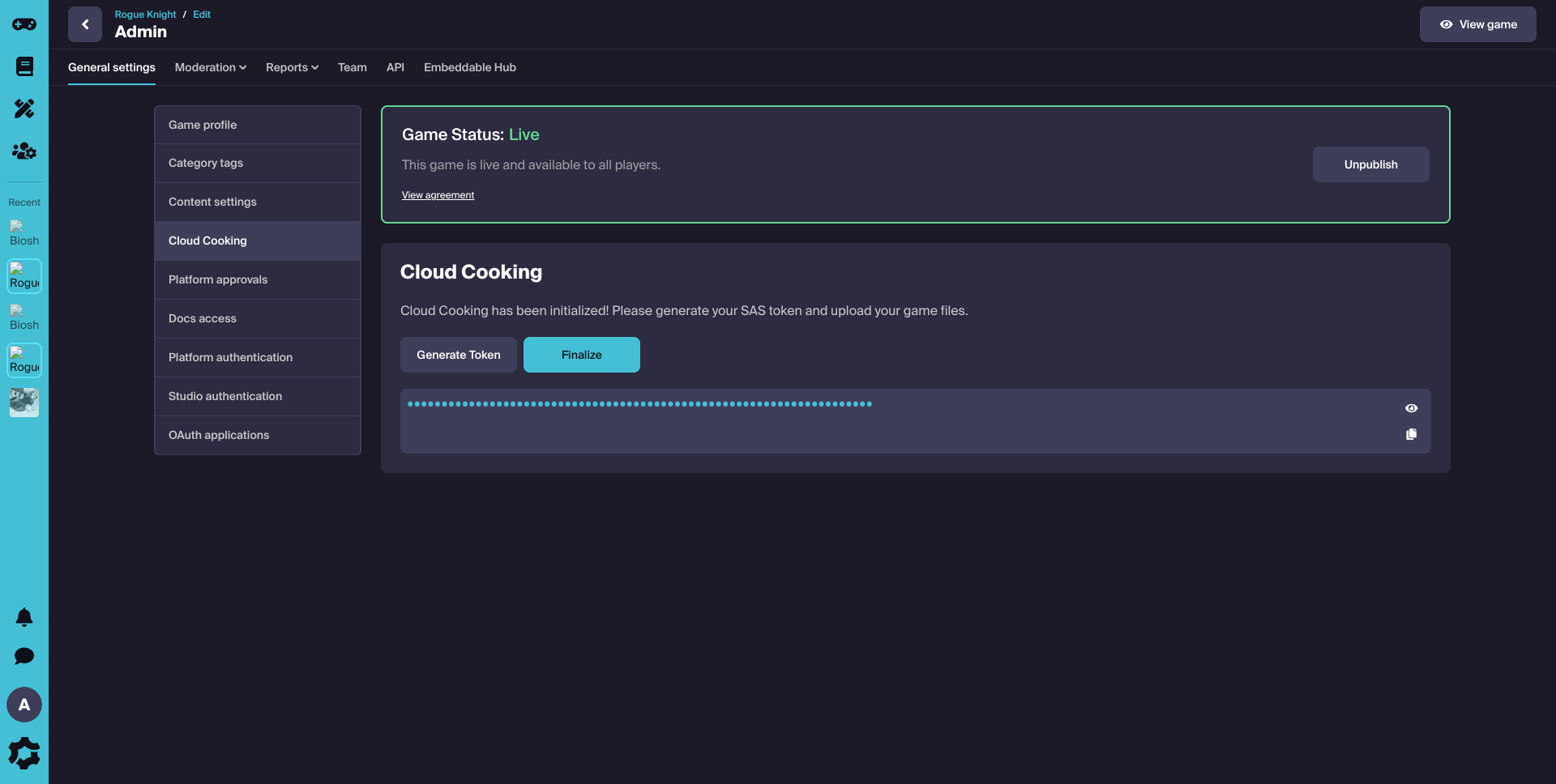

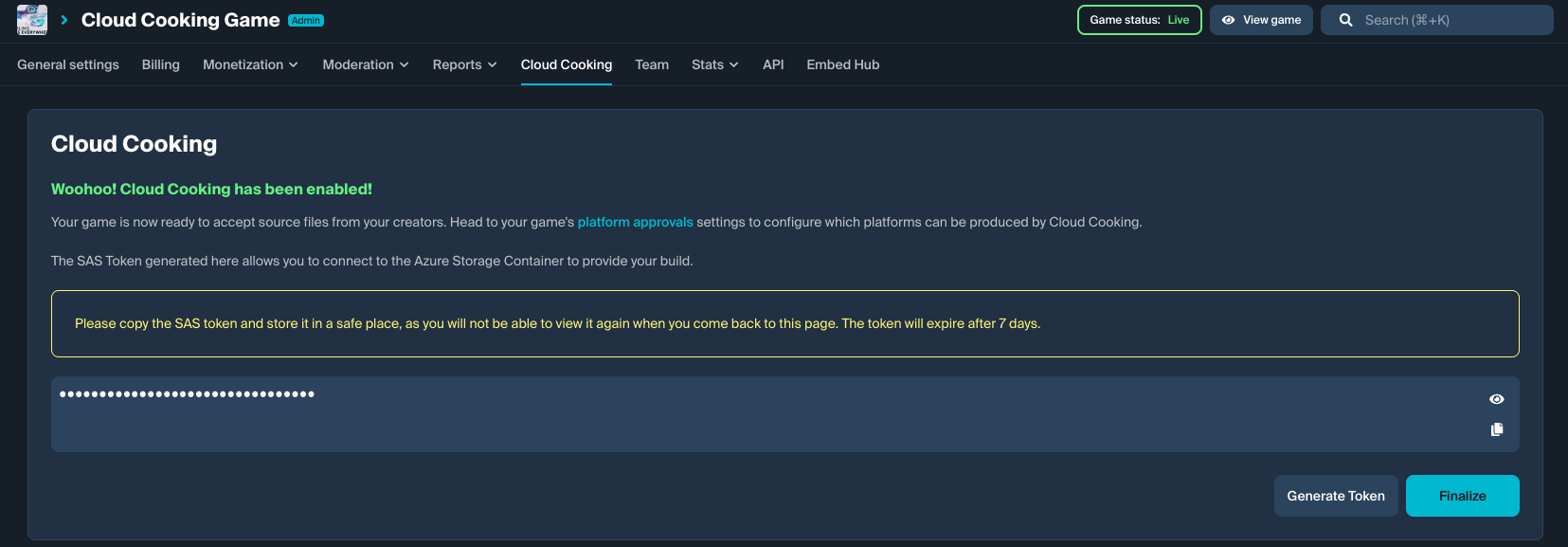

The SAS token presented on your Cloud Cooking page, used to authenticate with the Azure Storage container.

Start by downloading and installing Azure Storage Explorer. Once you have installed Azure Storage Explorer, select Attach to Resource to connect to your container.

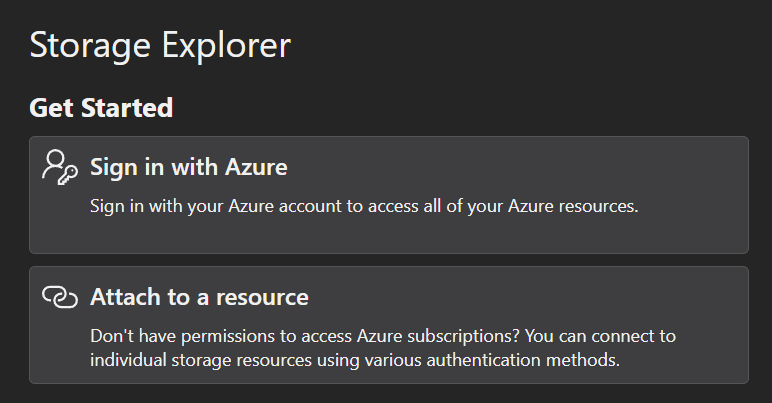

The Attach to Resource option in Azure Storage Explorer.

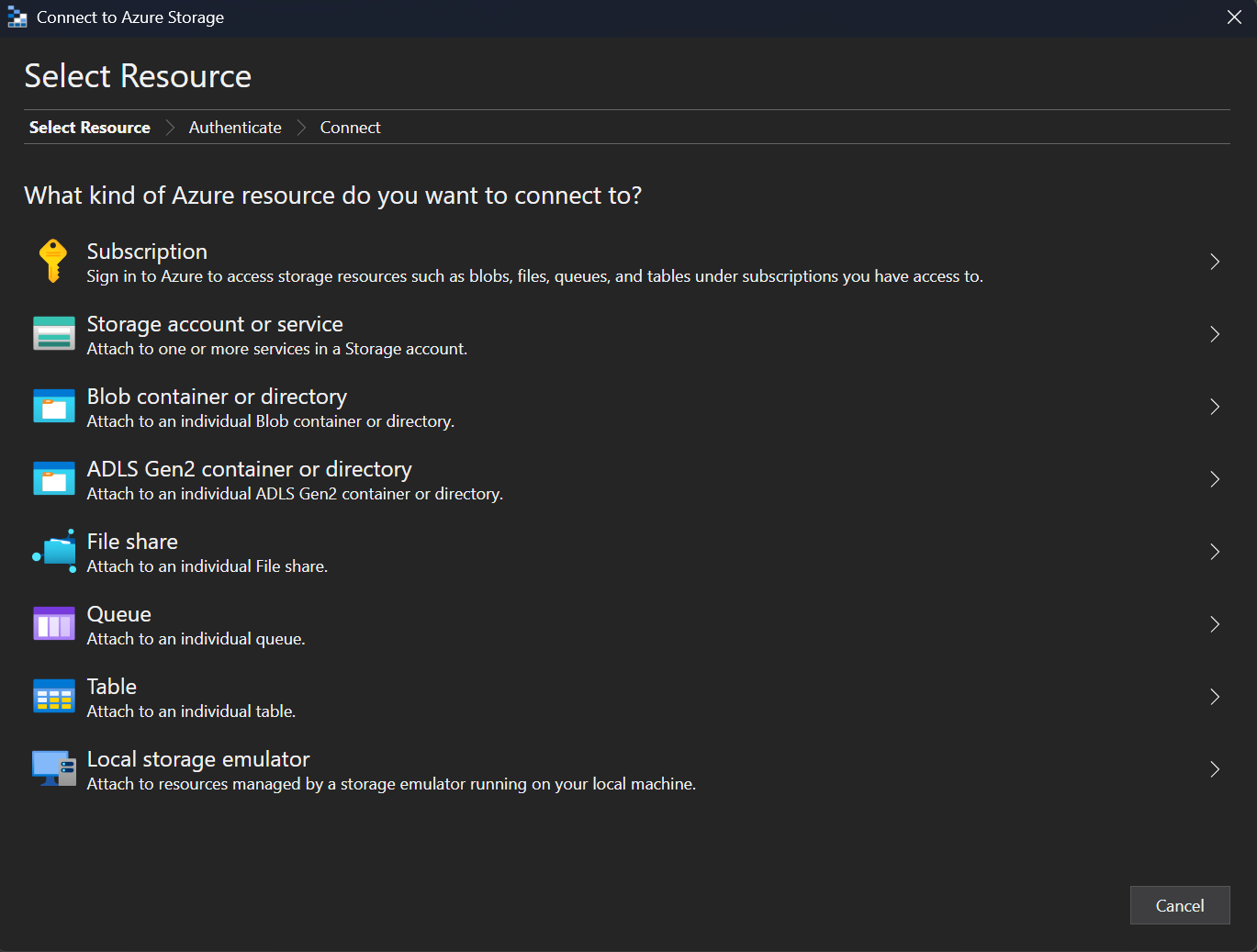

The resource you want to attach to is a Blob Container or Directory.

Selecting the Blob Container or Directory resource type in Azure Storage Explorer.

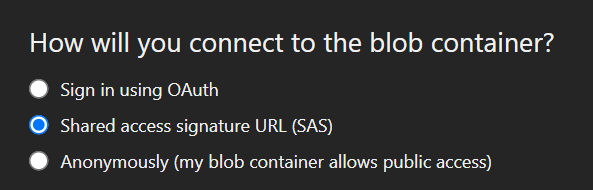

Select the option to connect using a SAS.

Choosing to connect to the resource using a SAS token.

Complete the setup by entering the SAS from your Cloud Cooking page.

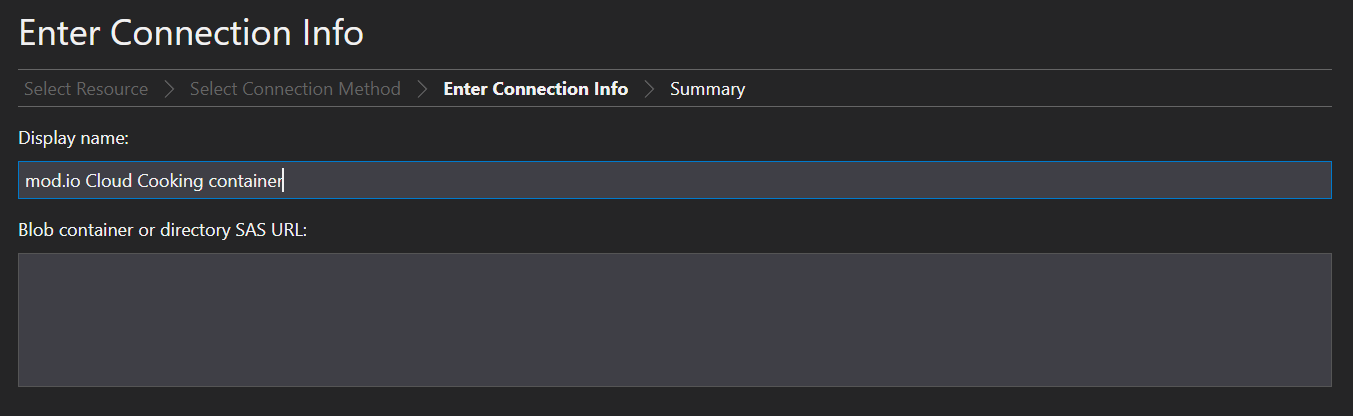

Entering the SAS token copied from your Cloud Cooking page.

note

The generated SAS token is valid for 7 days. Treat this SAS like a secret.

Once you have connected, you can upload your build to the available Cloud Cooking container as detailed in the Preparing Your Game section.

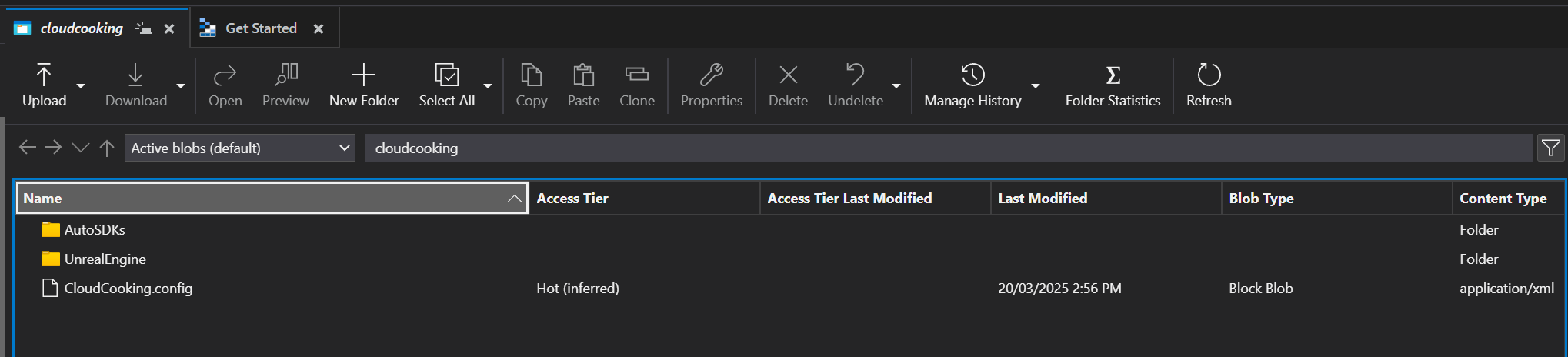

Uploading your build to the Cloud Cooking Azure Storage container via Azure Storage Explorer.

Finalizing your build

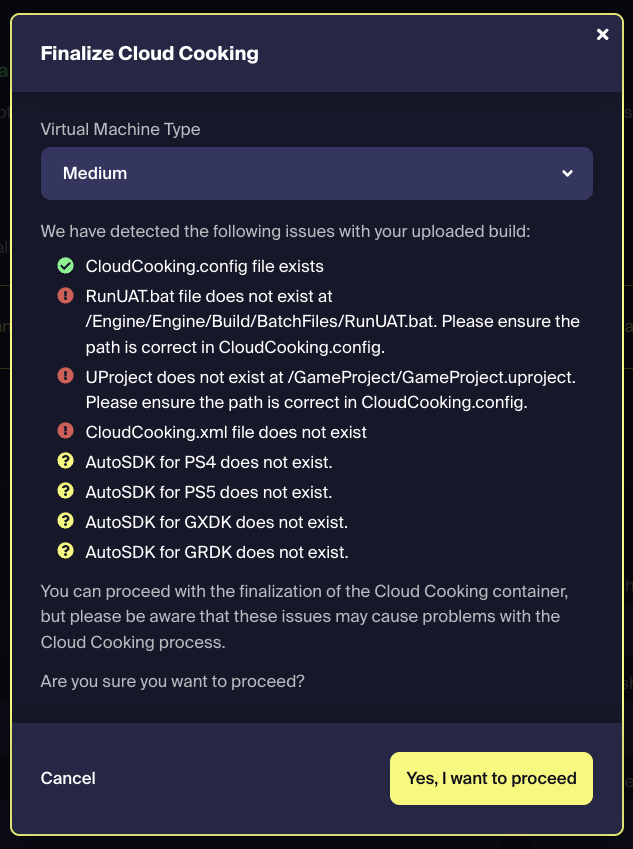

The Finalize Cloud Cooking modal, showing details and any issues found with your uploaded build.

Once you have uploaded your build, click Finalize and you will be presented with details on your uploaded build, including any issues that were found. If there are any issues, please make sure to resolve them before proceeding.

Select the appropriate VM size, click Yes, I want to proceed and mod.io will generate a virtual machine image for the Cloud Cooking build agents. This can take some time, particularly if your build is large. You can return to the configuration page to verify once the imaging and provisioning process is complete and Cloud Cooking is available for use.

Configuring Cloud Cooking platforms

Once the provisioning process has been completed, your game is now ready to accept source files from your creators. To configure which platforms can be produced by Cloud Cooking, navigate to your Game Admin page > General Settings > Platform Approvals.

Any platform which is Locked is available for creators to submit a file to for Cloud Cooking. Locked platforms cannot have content uploaded to them as part of the normal file upload flow.

As an example, the following configuration would allow content creators to upload their own files for Windows, but require PS4 and PS5 to go through the Cloud Cooking process.

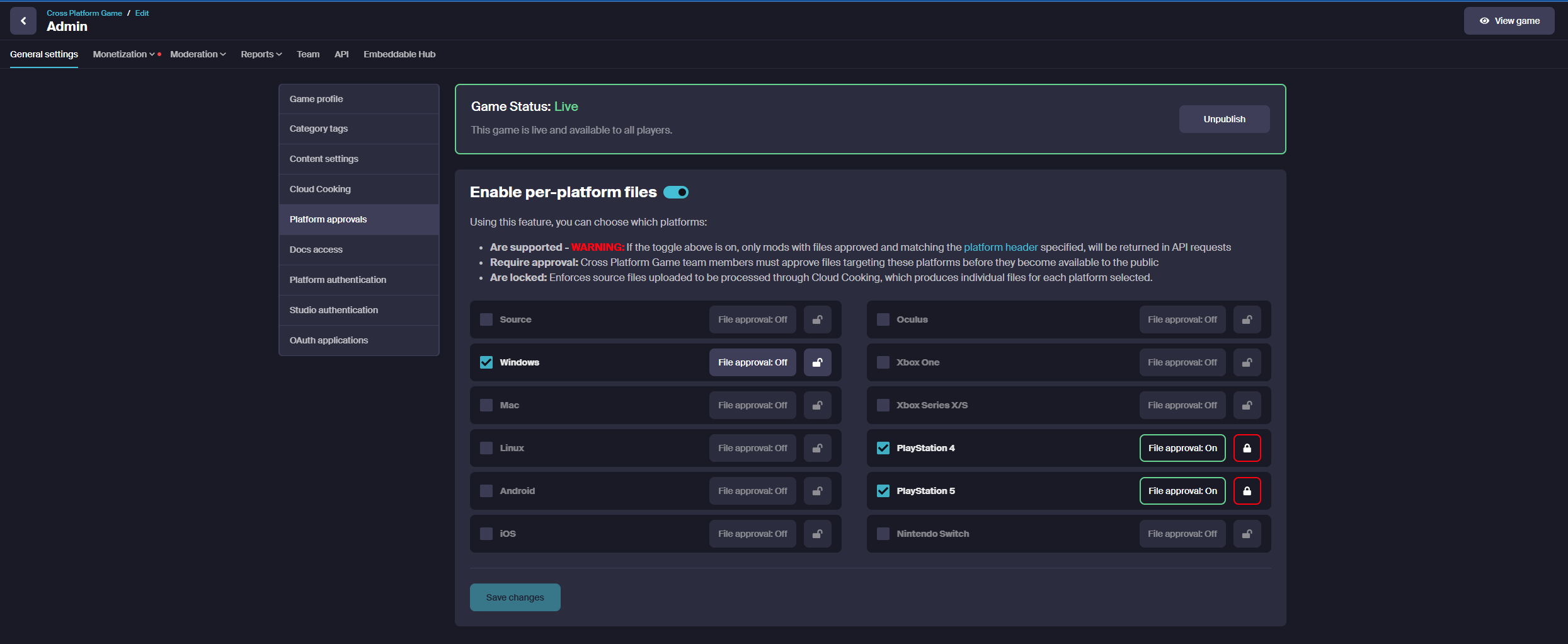

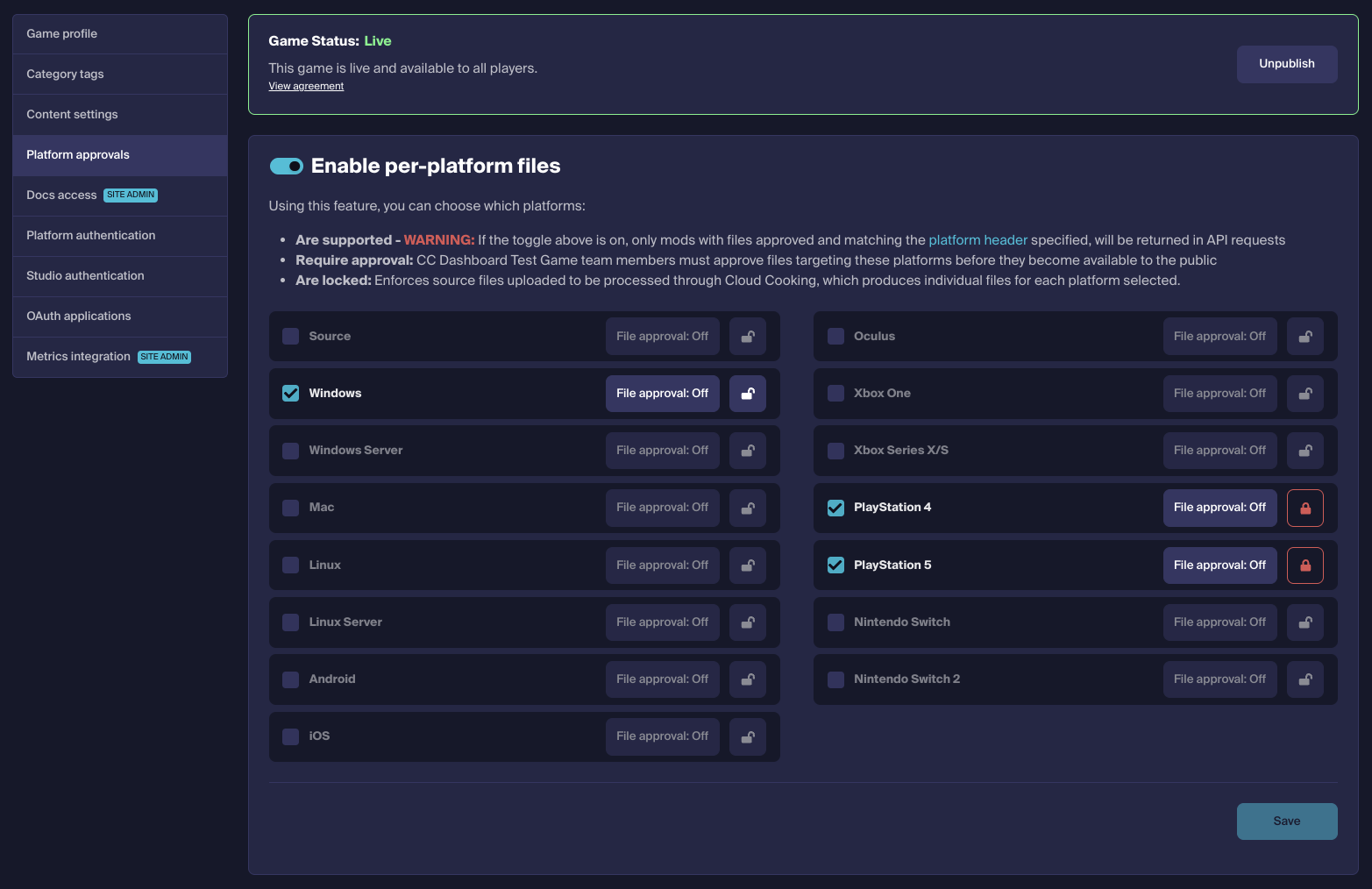

An example Platform Approvals configuration: Windows accepts direct uploads, while PS4 and PS5 are locked to Cloud Cooking.

Source file upload

Once you have enabled Cloud Cooking and locked the target platforms, content creators will be able to add files targeting those platforms in their mod's File Management page through the standard File Upload flow.

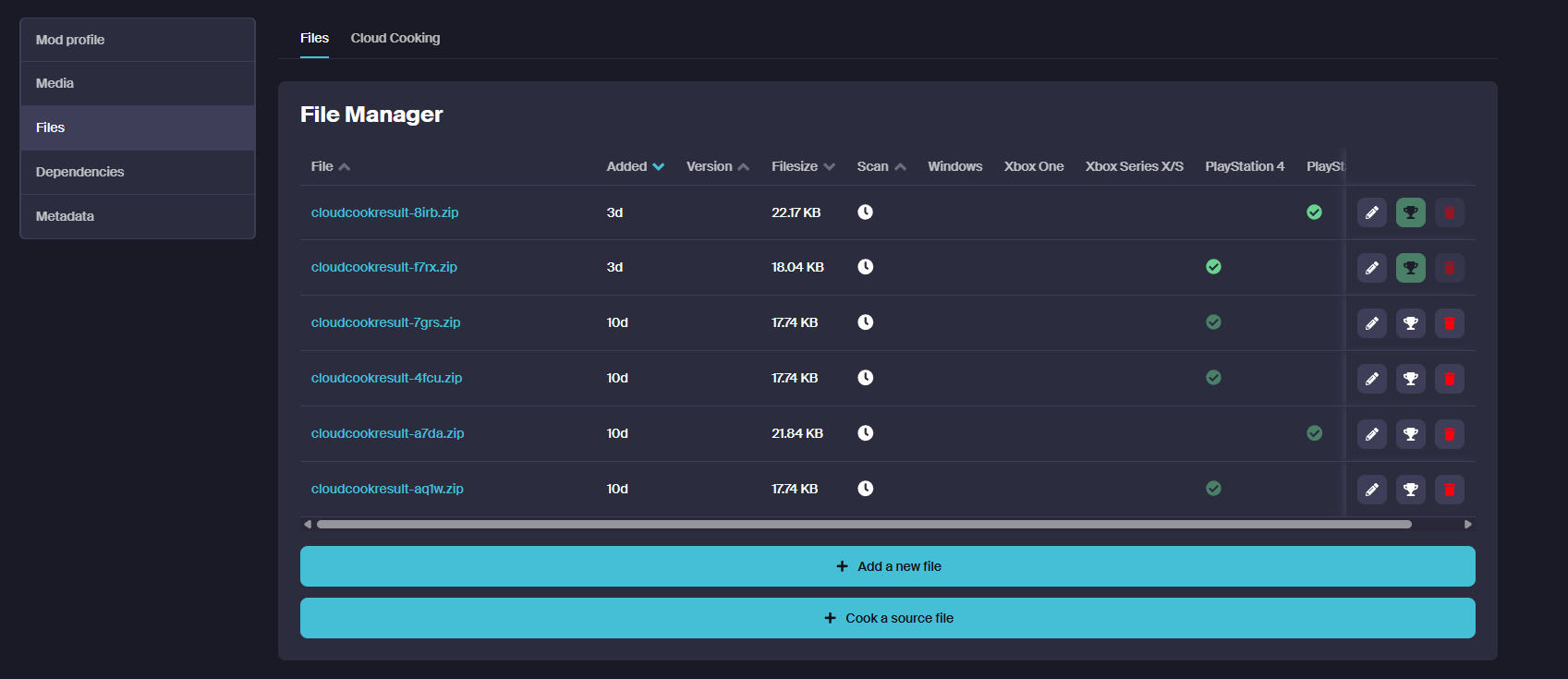

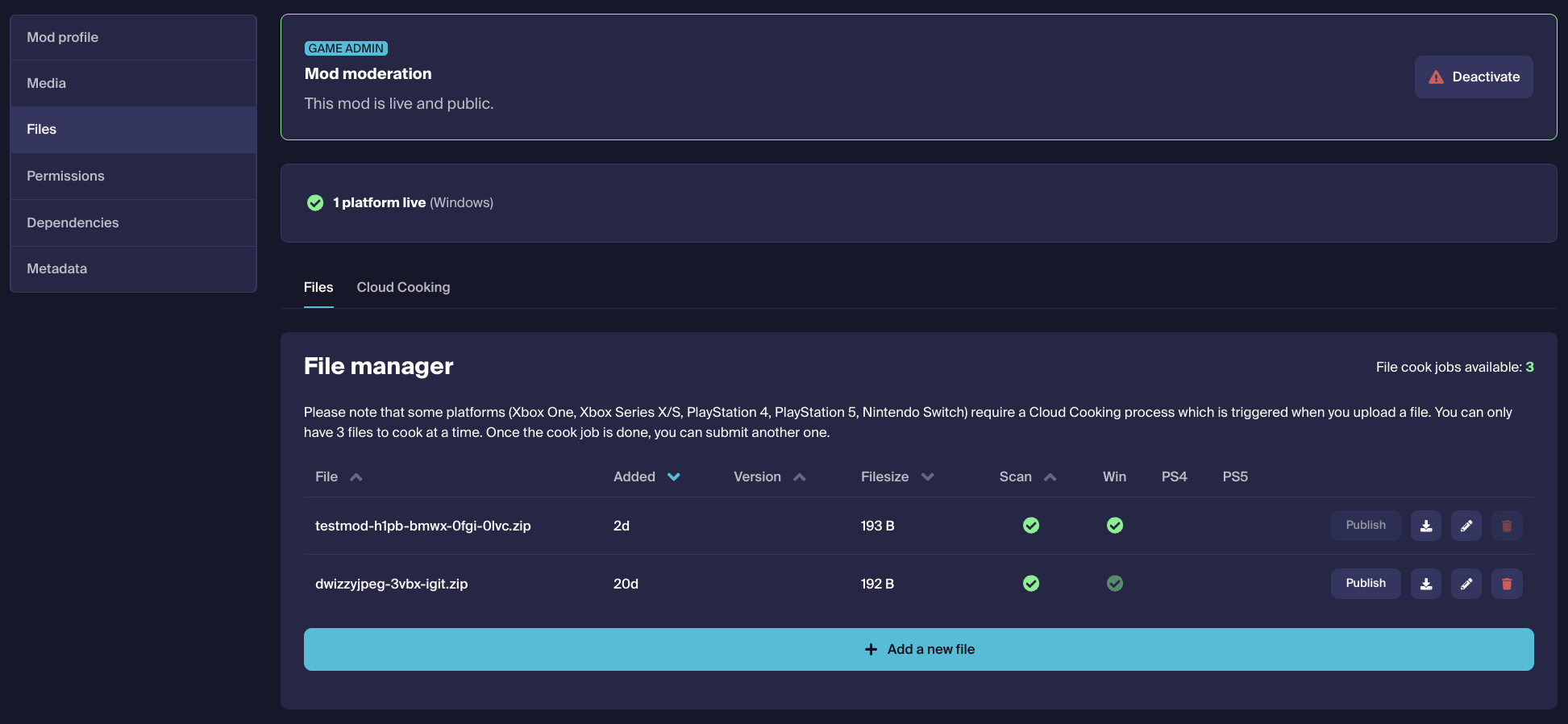

The standard File Upload flow on a mod's File Management page.

When uploading files, creators will now be given a With Cloud Cooking option. In this mode, all Locked platforms (the platforms intended to be targets for Cloud Cooking) are made available for selection. Any details filled in by the creator are copied to the output platform mod file as part of the Cloud Cooking process.

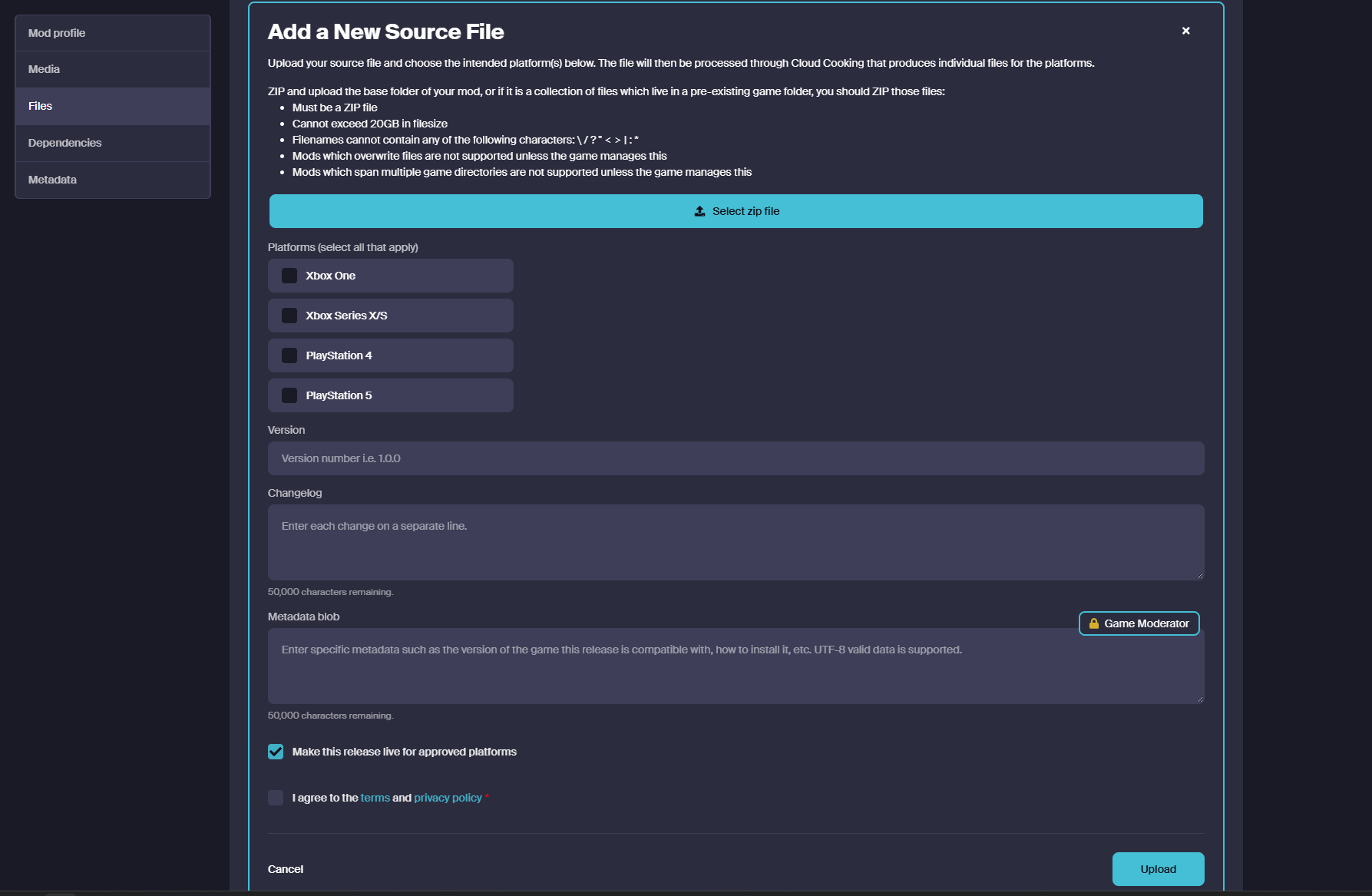

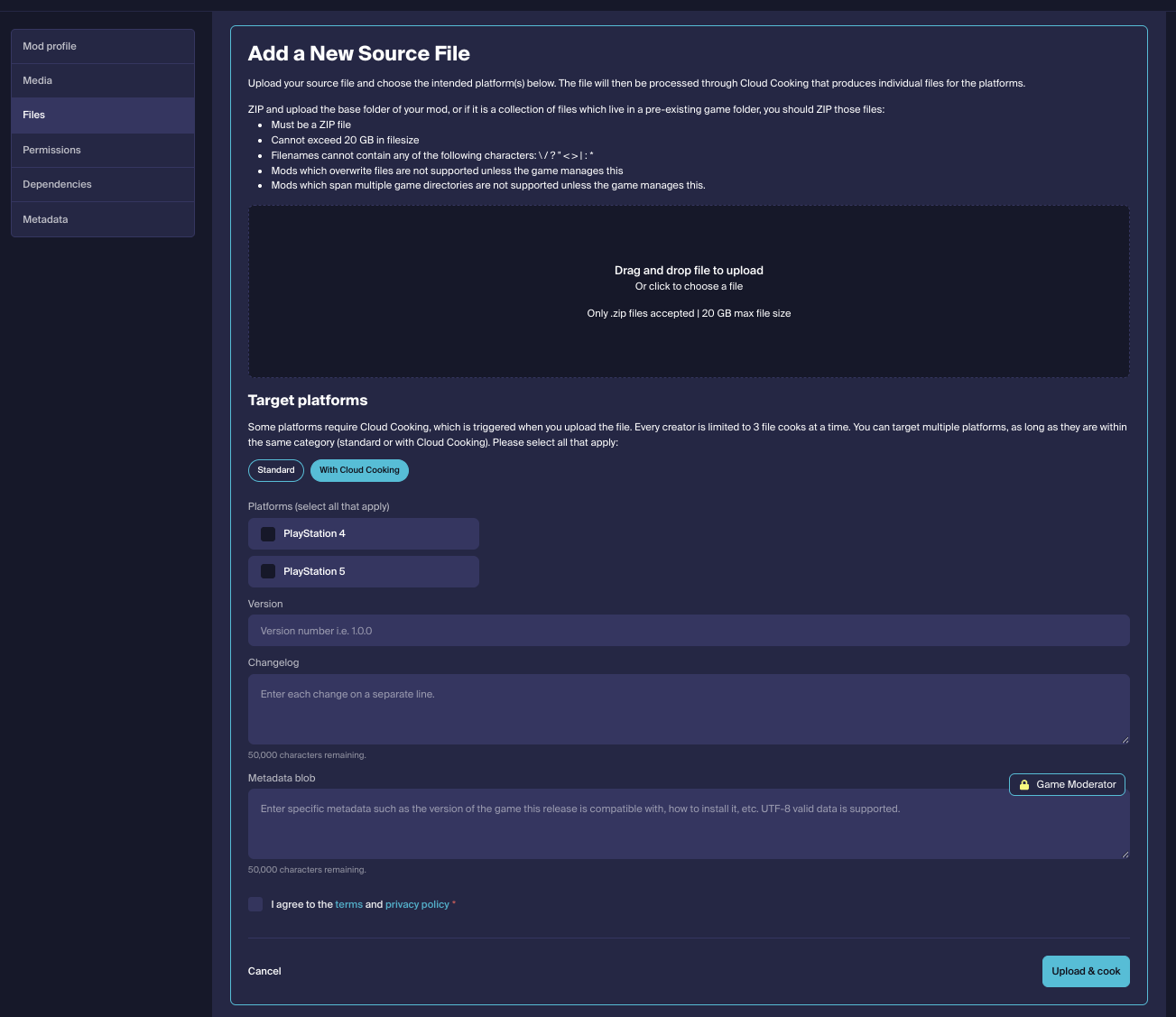

Selecting the With Cloud Cooking option and choosing target Locked platforms during file upload.

note

Platform files that are produced by Cloud Cooking are subject to the same scanning, approval and moderation workflows as any other file that are uploaded to mod.io.

Cloud Cooking progress and status reporting

Once a file has been queued for Cloud Cooking, content creators can view the status of their files - whether they are pending cook, in the process of being cooked, and success or failure of the cook process. Once a cook has been completed, full logs are available for viewing in the Details pane for each cook job.

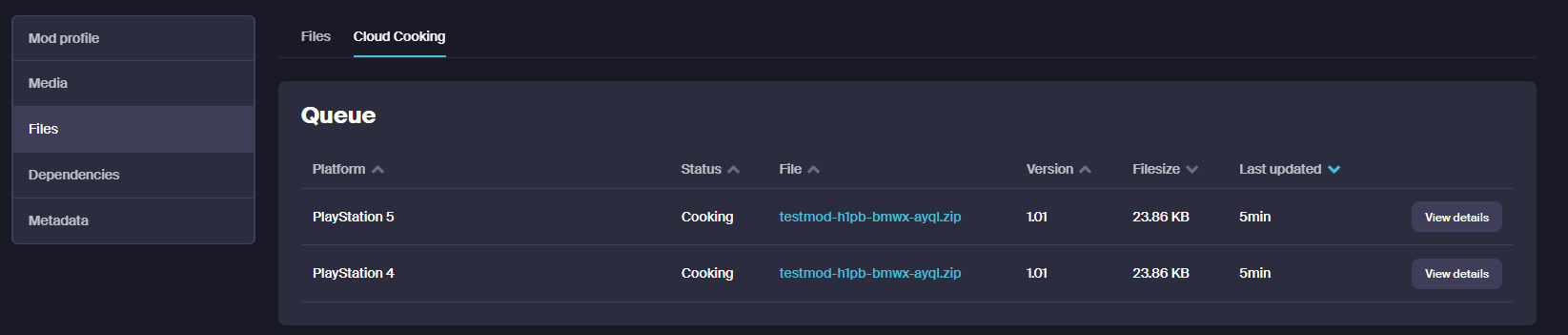

The Cloud Cooking status view, showing the progress and outcome of each queued cook job.

CI integration

If you're looking to integrate the steps above into a programattic workflow, such as a CI/CD pipeline where you generate new tooling and builds to upload to the Azure Storage instance for your game, you can follow these steps.

Step 1

Obtain a Service Token with the update scope.

curl -L -g -X POST 'https://g-{your-game-id}.moddemo.io/v1/oauth/token' \
-H 'Accept: application/json' \
-H 'Content-Type: application/x-www-form-urlencoded' \
-d 'client_id=<client_id_goes_here>' \
-d 'client_secret=<client_secret_goes_here>' \
-d 'grant_type=client_credentials' \
-d 'scope=update'

Step 2

Generate an Azure SAS token to upload your build tool to the dedicated Azure Storage for your games cloud cooking infrastructure. Use the token generated from the proceeding step in the Authorization header.

curl -L -g -X POST 'https://g-{your-game-id}.modapi.io/v1/games/:game-id/cloud-cooking/sas-token' \
-H 'Accept: application/json' \
-H 'Content-Type: application/x-www-form-urlencoded' \
-H 'Authorization: Bearer <token>' \
-d 'valid_for_days=7' # must be between 1 and 365

Step 3

Upload your build to Azure Storage using the token generated above, following the instructions and guidelines in Cloud Cooking Setup Guides to ensure your build provides everything required to cook a mod file.

Step 4

Call the Cloud Cooking Finalization Endpoint. This endpoint should be called each time you upload new builds in order for the cook agents to reflect your changes. This is an asynchronous operation which can take 2 hours+ (depending on engine and provisioning scripts) to create a new virtual machine image. It will transition your games cloud_cooking_status to finalizing.

curl -L -g -X POST 'https://g-{your-game-id}.modapi.io/v1/games/:game-id/cloud-cooking/finalization' \
-H 'Authorization: Bearer <token>'

Step 5

Configure a webhook to be notified of the success or failure of the finalize operation. This can be found under the Moderation > Automation menu item in your game admin settings. Add a new rule to the ruleset. The action should be Cloud Cooking Webhook, it should fire a webhook, and the when condition should match the payload field as illustrated:

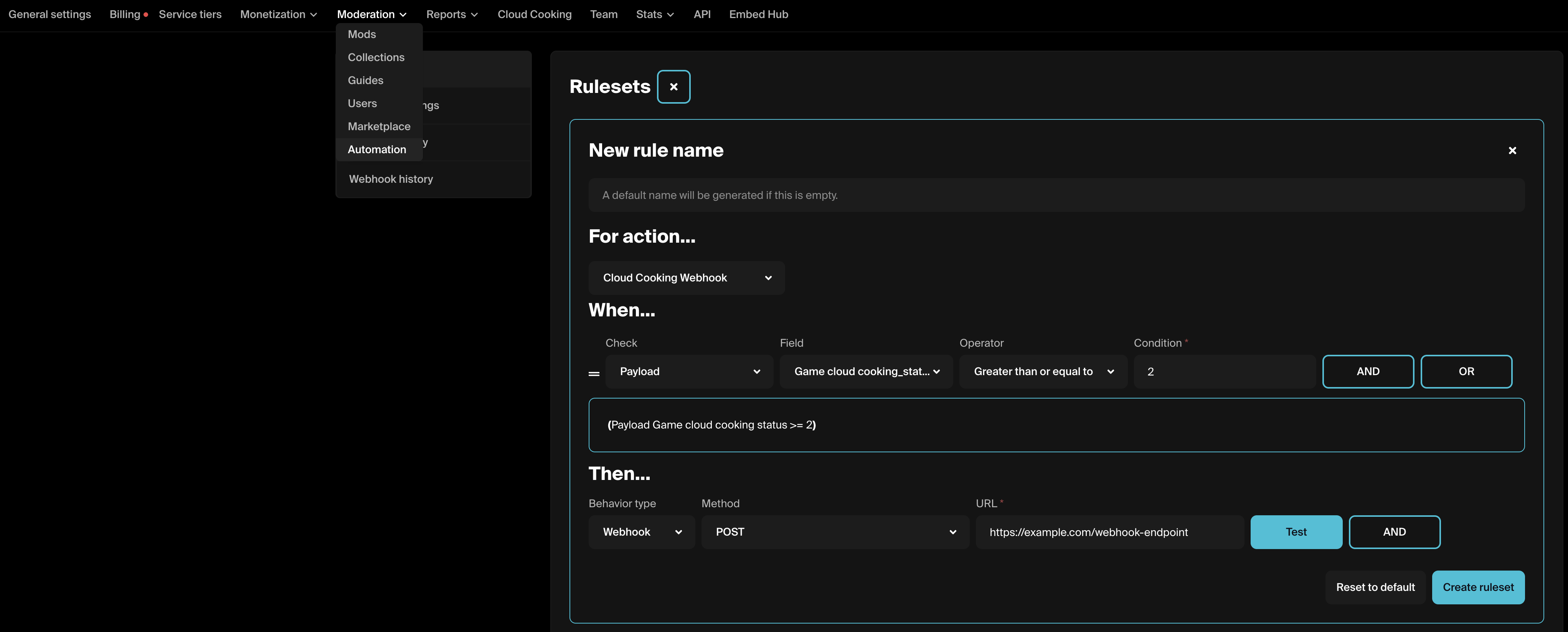

Configuring a rules engine automation rule to fire a webhook on Cloud Cooking finalization events.

The webhook will receive a response in the following shape:

{
  // Other fields will also be present on the payload.
  // Refer to our "Rules Engine" documentation for details
  "event_body": {
    "game_id": 7049,
    "workflow": "finalize",
    "status": 200 // 200 for success, 422 for failure
  }
}

As implied, a success of 200 indicates the finalization operation succeeded. Whereas a 422 indicates failure.

A visual representation of this flow is as follows.
