Substituting Components in the Template Mod Browser

Substitutability of components is one of the core design features of the mod.io component UI framework. This guide explains how mod.io UI interfaces enable the substituting of mod.io default components for your own components in the template implementation of the component UI framework.

Interfaces and getter functions

The previous guide to building a simple mod browser from components demonstrates a basic use of the interface design pattern seen throughout the template UI implementation. The outermost browser widget is composed of multiple sub-components, however these are never referenced directly. Each sub-component is instead typed as a UWidget with a desired interface accessed via a getter function.

WBP_ModioModBrowser library button example

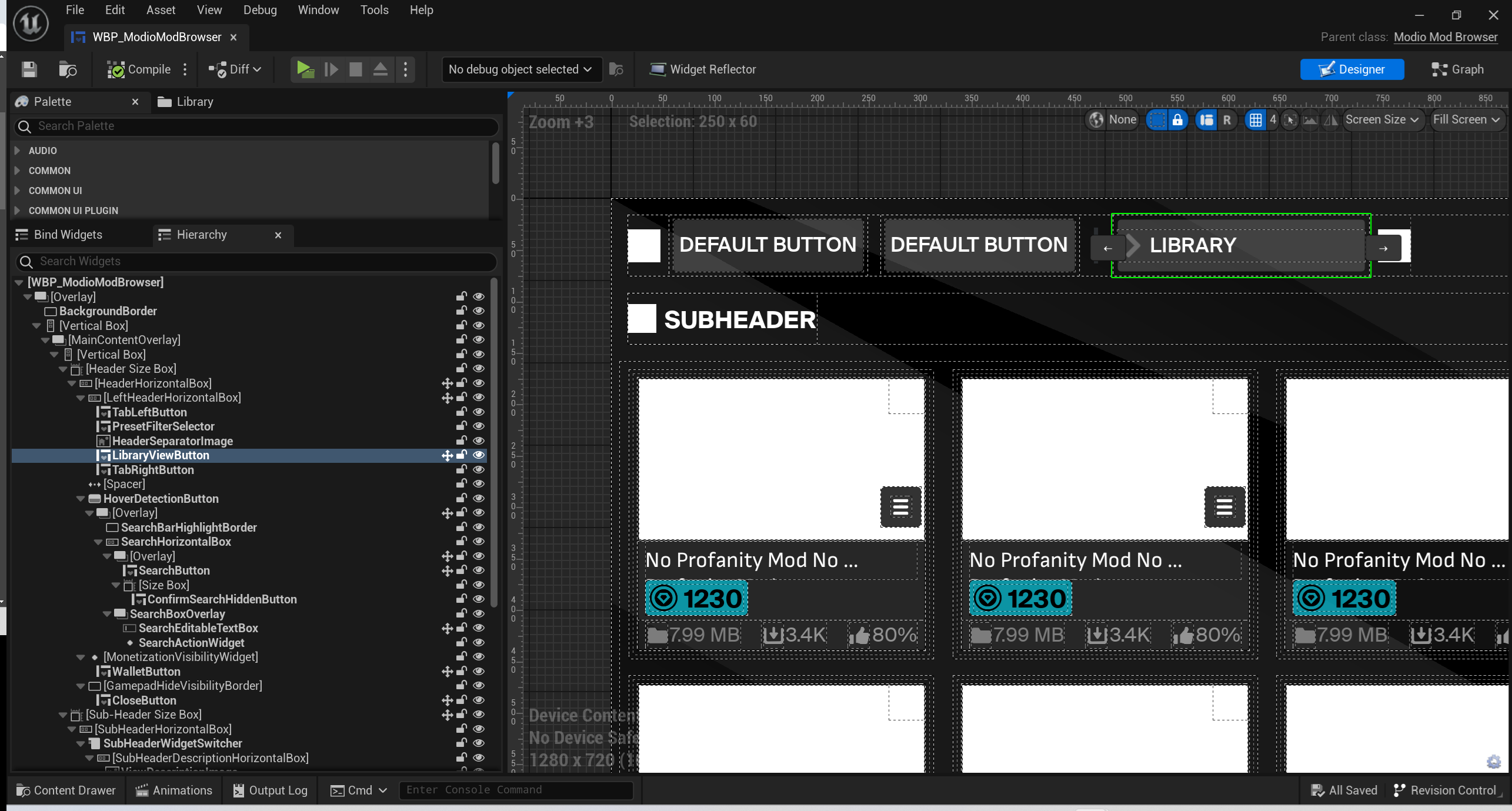

WBP_ModioModBrowser contains the LibraryViewButton that, when clicked, displays the current user's subscriptions in the mod tile grid.

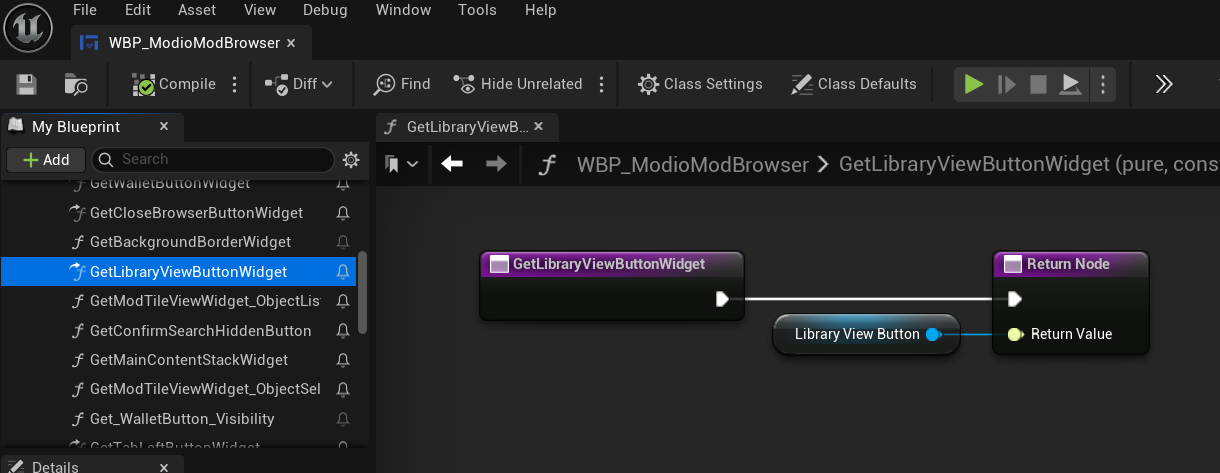

Getter functions for WBP_ModioModBrowser are found in My Blueprint under Functions -> mod.io -> UI -> Mod Browser -> Widget Getters. Here GetLibraryViewButtonWidget() is found.

Some functions in WBP_ModioModBrowser are defined in the parent class ModioModBrowser.h, while others are defined only in WBP_ModioModBrowser. GetLibraryViewButtonWidget() is the former. Its definition in ModioModBrowser.h shows that it returns type TScriptInterface<IModioUIClickableWidget>.

UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category = "mod.io|UI|Mod Browser|Widget Getters",
       meta = (BlueprintProtected))
TScriptInterface<IModioUIClickableWidget> GetLibraryViewButtonWidget() const;

LibraryViewButton is of type WBP_ModioDefaultIconButton. This type implements IModioUIClickableWidget, allowing it to be returned by GetLibraryViewButtonWidget().

note

WBP_ModioDefaultIconButton inherits IModioUIClickableWidget and more via UModioDefaultIconButton -> UModioDefaultTextButton -> UModioButtonWidget.

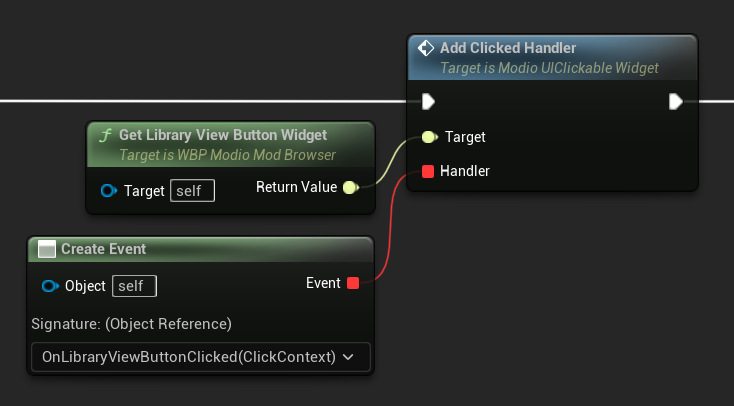

GetLibraryViewButtonWidget() is used throughout WBP_ModioModBrowser to call functions that are made available by the IModioUIClickableWidget.

GetLibraryViewButtonWidget() returns IModioUIClickableWidget because this represents its most essential function as a button — being clicked. However, WBP_ModioDefaultIconButton implements many interfaces that are relevant to its function and styling: IModioUIImageDisplayWidget, IModioUIHasTextWidget, IModioUISelectableWidget, IModioUIHoverableWidget and more.

In cases where an interface other than IModioUIClickableWidget functionality is required, GetLibraryViewButtonWidget() is still used. Its return value is either cast to the required interface, or a message function taking an Object reference is used.

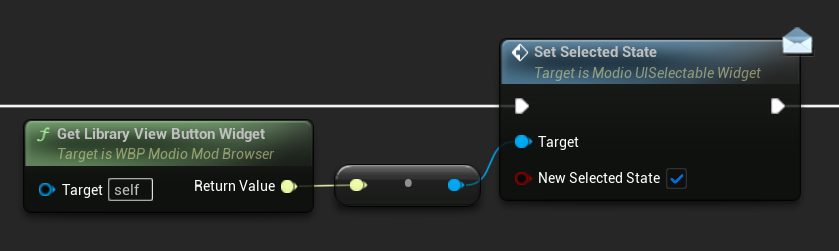

SetSelectedState is a message function. It does nothing unless Target implements IModioUISelectableWidget

note

With the exception of Object references, getter functions throughout the component UI never cast to a concrete type!

Creating custom components to substitute

By adhering to the above pattern, the template implementation allows you to substitute your own components directly into the Widget Blueprint provided the substituting component implements the expected interface(s). There are 3 ways to achieve this:

• Wrapping an existing widget
• Creating a new widget
• Subclassing an existing widget

These techniques are explained in detail in Creating Custom Components.

Substituting a component

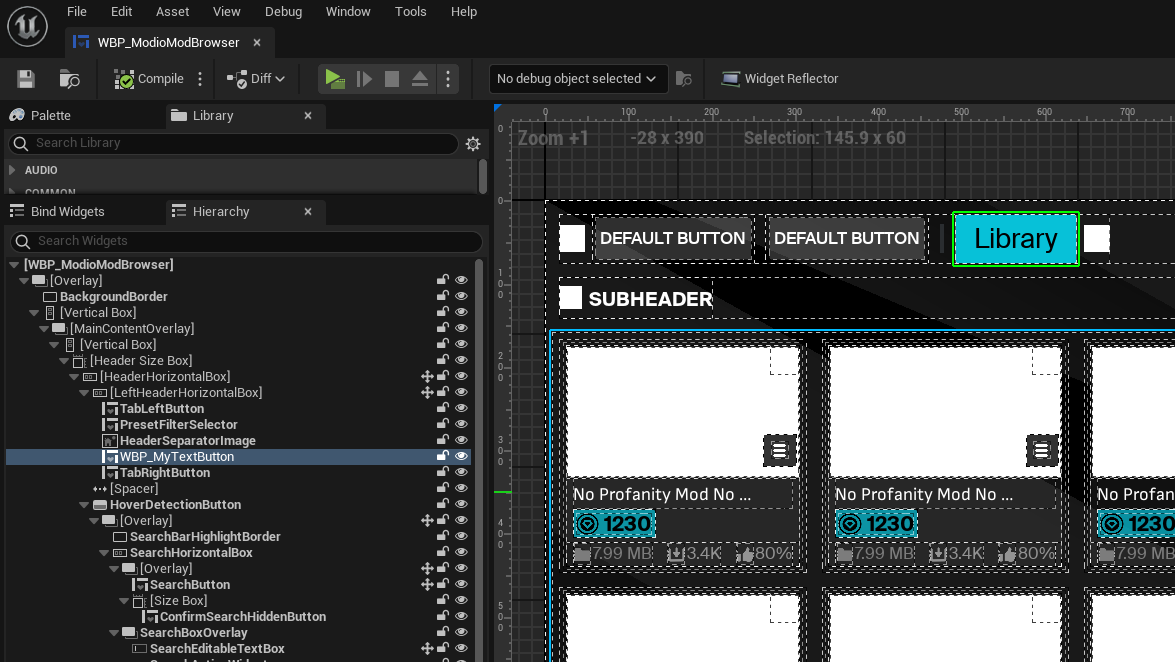

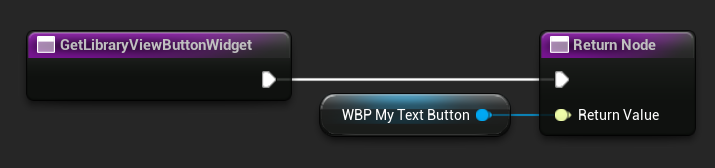

After creating a new component that implements the required interfaces, remove the existing component. Next, add your new component to the Blueprint hierarchy and getter function. Configure any default values and styling options that are exposed to the outer widget, as needed.
