Metrics Play Sessions

The mod.io Unreal Engine Plugin supports all of the mod.io metrics features, allowing you to start a metrics play sesion, keeping that session alive via a heartbeat (automatically called, or manually handled) and then ending that session. Metric sessions allow you to track which mods your players interact with most frequently. Visit https://docs.mod.io/metrics/ for an overview of the mod.io metrics system.

note

Running metrics play sessions is a premium feature. If you are interested in mod.io premium features, please contact developers@mod.io.

The Metrics session functionality is all accessible through the ModioSubsystem class.

Metrics based on the platform and portal, are transparently taken care of with no additional consideration needed when using the SDK.

Initialization​

The mod.io metrics features are enabled as part of generating a Metrics Secret Key your API settings in your game dashboard, e.g. https://mod.io/g/game-name/admin/api-key. Once this key has been generated, you need to pass it in as an ExtendedInitializationParameters entry in your InitializeOptions when Initializing the mod.io SDK, e.g.:

FModioInitializeOptions initializeOptions;
initializeOptions.ExtendedInitializationParameters.Add("MetricsSecretKey", "00000000-1111-2222-3333-444444444444");

Failing to set up the Metrics Secret Key will result in a `SessionNotInitialized`` error being returned when using the metrics functionality.

Starting a Metrics Session​

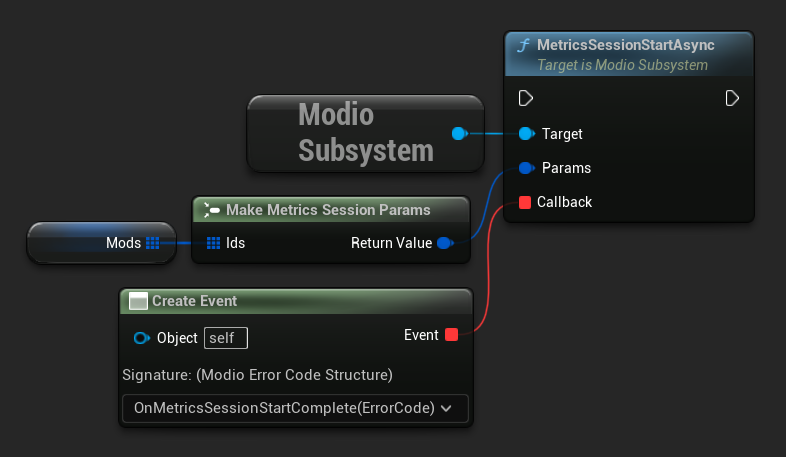

You can call MetricsSessionStartAsync to start a new session tracking the usage of mods in the context of your game. You'll notice that MetricsSessionStartAsync takes a MetricsSessionParams struct as its parameter. This contains an optional Session Id, as well as a required vector of mods to track.

note

If a Session Id is not provided, a random one will be created for you.

FModioMetricsSessionParams Params = FModioMetricsSessionParams(ModIds);

void UModioManager::MetricsSessionStart(const FModioMetricsSessionParams& Params)
{
	GEngine->GetEngineSubsystem<UModioSubsystem>()->MetricsSessionStartAsync(
		Params, FOnErrorOnlyDelegateFast::CreateUObject(this, &UModioManager::MetricsSessionStartCallback));
}

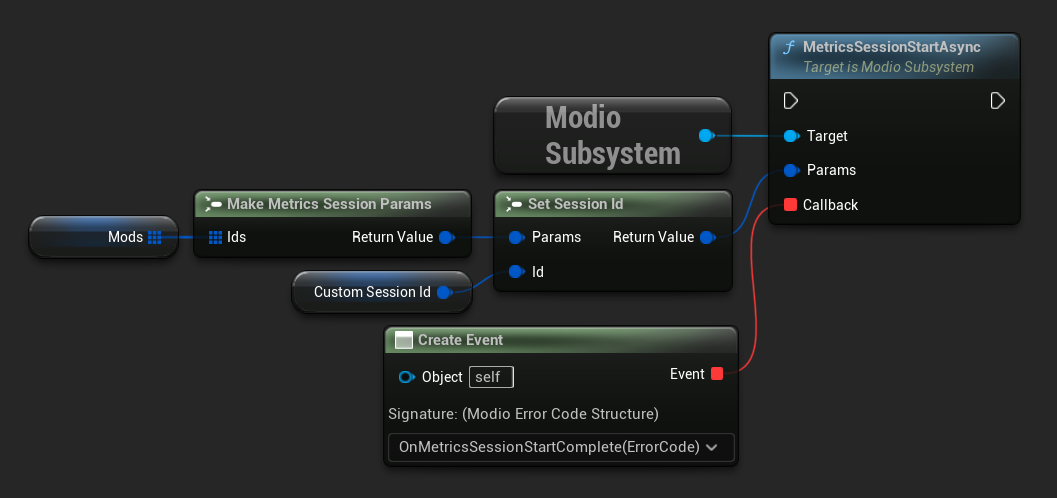

The Metrics Session Params accepts an optional Session Id in the form of a FModioGuid which you may want to use to associate the new session with any supplementary telemetry you are gathering in your game.

Metrics heartbeat​

To ensure that the session is kept alive, a heartbeat is required to be submitted at most every 5 minutes. We recommend doing this a bit earlier than the threshold to ensure you do not miss the window.

There are two methods provided to control the behaviour of the heart beat, MetricsSessionSendHeartbeatOnceAsync which you can call at your desired precision, as well as a single call and forget MetricsSessionSendHeartbeatAtIntervalAsync with a desired interval.

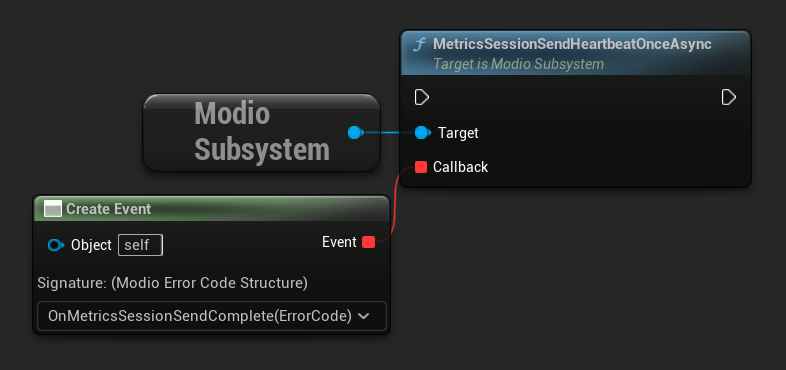

Calling MetricsSessionSendHeartbeatOnceAsync will submit a single heartbeat, and return an error code if something went wrong. If no error has occured, the heartbeat has been successfully sent.

void UModioManager::MetricsSessionHeartbeat()
{
	GEngine->GetEngineSubsystem<UModioSubsystem>()->MetricsSessionSendHeartbeatOnceAsync(
		FOnErrorOnlyDelegateFast::CreateUObject(this, &UModioManager::MetricsSessionHeartbeatCallback));
}

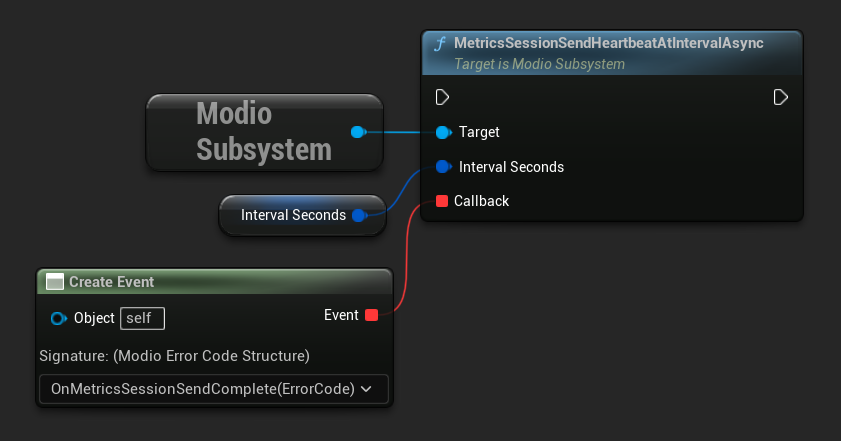

Calling MetricsSessionSendHeartbeatAtIntervalAsync requires a parameter with the desired interval frequency in seconds. An error code will be returned if something went wrong, otherwise you will receive a false-y error if the interval loop has been shut down successfully (such as ending a session).

const FModioUnsigned64 IntervalSeconds(150);

void UModioManager::MetricsSessionHeartbeat(const FModioUnsigned64& IntervalSeconds)
{
	GEngine->GetEngineSubsystem<UModioSubsystem>()->MetricsSessionSendHeartbeatAtIntervalAsync(
		IntervalSeconds,
		FOnErrorOnlyDelegateFast::CreateUObject(this, &UModioManager::MetricsSessionHeartbeatCallback));
}

Ending a Metrics Session​

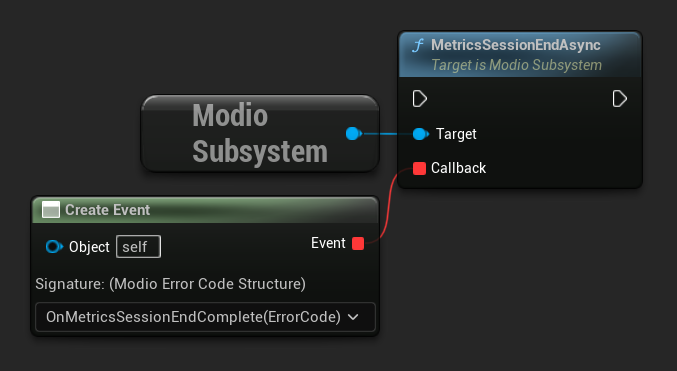

To complete a session, for example when finishing a match, or quitting out of your game, you can call MetricsSessionEndAsync. As with the other calls, you will receive an error if anything has gone wrong, otherwise the operation successfully completed.

void UModioManager::MetricsSessionHeartbeat()
{
	GEngine->GetEngineSubsystem<UModioSubsystem>()->MetricsSessionEndAsync(
		FOnErrorOnlyDelegateFast::CreateUObject(this, &UModioManager::MetricsSessionHeartbeatCallback));
}
