Monetization

The mod.io Unreal Engine Plugin supports a range of monetization features, allowing you to sell a per-game virtual currency to your players that they can use to purchase mods, with a share of the revenue split between creators and your studio. An overview of the mod.io monetization system is available here.

Every platform requires specific setup for monetization features to work, particularly with respect to the virtual currency configuration and API calls. The following documentation is generically applicable. Platform-specific information is available in the relevant platform documentation section.

Initialization​

The mod.io monetization features are enabled during the onboarding process on your game profile.

Ensure that you have set the appropriate Portal when initializing the plugin. For instance, on Steam you must initialize with EModioPortal::Steam to redeem entitlements for Steam.

Getting the user's wallet​

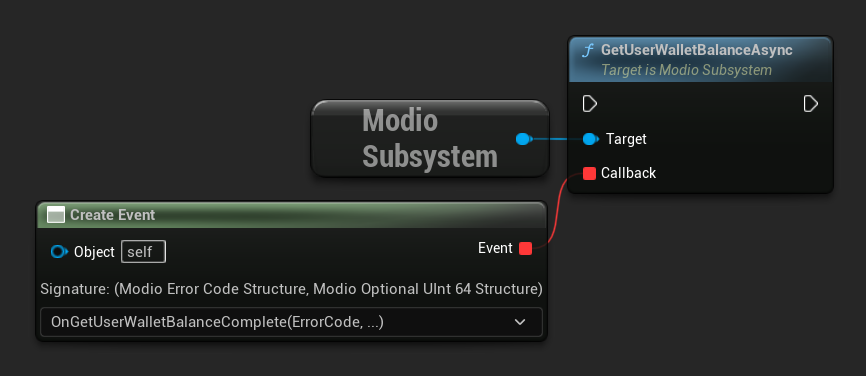

On startup, you can make a call to UModioSubsystem::GetUserWalletBalanceAsync to get the balance of the current user's wallet. If no wallet exists for the user, one will be automatically created for them. This call returns the user's wallet balance for the current game.

The only time you need to make this call is on start-up. We recommend that you cache the value of this result in your game code rather than making consistent calls to UModioSubsystem::GetUserWalletBalanceAsync, and update your local state from the return values of other calls that affect wallet balance.

void UModioManagerSubsystem::GetUserWallet()
{
   if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   {
   	Subsystem->GetUserWalletBalanceAsync(FOnGetUserWalletBalanceDelegate::CreateUObject(this, &UModioManagerSubsystem::OnGetUserWalletComplete));
   }
}

void UModioManagerSubsystem::OnGetUserWalletComplete(FModioErrorCode ErrorCode, FModioOptionalUInt64 WalletBalance)
{
   if (!ErrorCode)
   {
   	// Wallet balance successfully retrieved
   }
}

Querying mods​

As part UModioSubsystem::ListAllModsAsync, you can include an additional filter for whether you list paid mods. By default, only free mods are shown. Set RevenueType on the ModioFilterParams object passed to UModioSubsystem::ListAllModsAsync to include free and paid content, or just paid content. All mods returned will have a Price property, indicating the virtual currency price that must be paid to purchase that mod.

Filtering for Paid/Unpaid content is not currently exposed to Blueprint.

Purchasing mods​

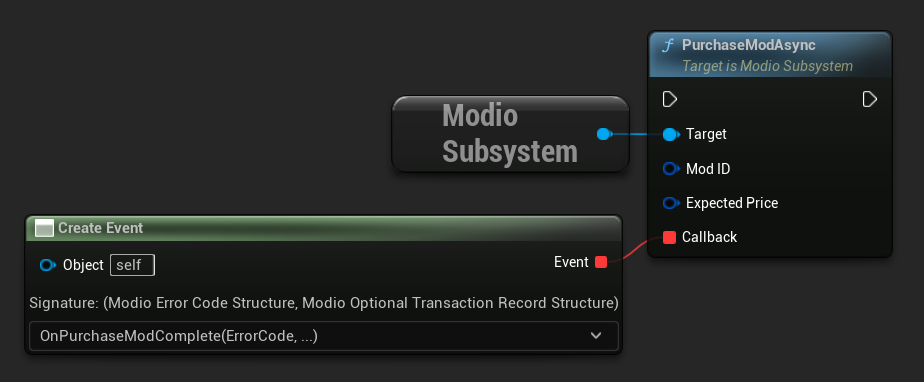

Call UModioSubsystem::PurchaseModAsync to purchase a specified mod. PurchaseModAsync takes two parameters: the ModioModID of the mod to purchase, and the ExpectedPrice, which is the price displayed to the user from UModioSubsystem::ListAllModsAsync. You must include this parameter for safety so the user is not charged more or less than the price displayed to them, in case the price of the mod has changed between the call to ListAllModsAsync and purchase time.

Once a mod is purchased, it is automatically subscribed to for the user.

You should validate that the user has enough virtual currency to make the purchase by comparing it to the balance you received from UModioSubsystem::GetUserWalletBalanceAsync. This is purely for user experience (e.g. for graying out the purchase button in the UI, or upselling the user a virtual currency pack); UModioSubsystem::PurchaseModAsync will return an error if the user has insufficient funds in their wallet.

An updated wallet balance (with the purchase amount subtracted) is returned in the callback of UModioSubsystem::PurchaseModAsync.

void UModioManagerSubsystem::PurchaseMod(FModioModID ModId, FModioUnsigned64 ExpectedPrice)
{
   if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   {
   	Subsystem->PurchaseModAsync(ModId, ExpectedPrice, FOnPurchaseModDelegate::CreateUObject(this, &UModioManagerSubsystem::OnPurchaseModComplete));
   }
}

void UModioManagerSubsystem::OnPurchaseModComplete(FModioErrorCode ErrorCode, FModioOptionalTransactionRecord Transaction)
{
   if (!ErrorCode)
   {
   	// Mod purchase successful
   }
}

Showing user purchases​

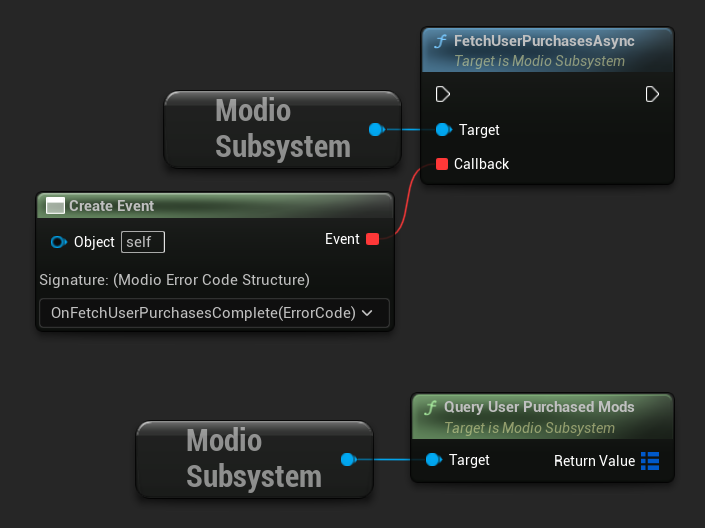

While purchased mods are automatically subscribed and installed at purchase time, the user can freely unsubscribe and uninstall purchased mods and they and they will remain owned and purchased by the user. They must re-subscribe to the mod to have it re-installed. Use UModioSubsystem::FetchUserPurchasesAsync to fetch an updated list of a user's purchased mods from the server. After a successful call, you can then display the user's purchased mods with UModioSubsystem::QueryUserPurchasedMods, allowing re-subscription as desired.

void UModioManagerSubsystem::FetchUserPurchases()
{
   if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   {
   	Subsystem->FetchUserPurchasesAsync(FOnFetchUserPurchasesDelegate::CreateUObject(this, &UModioManagerSubsystem::OnFetchUserPurchasesComplete));
   }
}

void UModioManagerSubsystem::OnFetchUserPurchasesComplete(FModioErrorCode ErrorCode)
{
   if (!ErrorCode)
   {
   	// Purchases Successfully Fetched
   	if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   	{
   		// We can now access the list of purchased mods directly
   		TMap<FModioModID, FModioModInfo> PurchasedMods = Subsystem->QueryUserPurchasedMods();
   	}
   }
}

Getting a user delegation token​

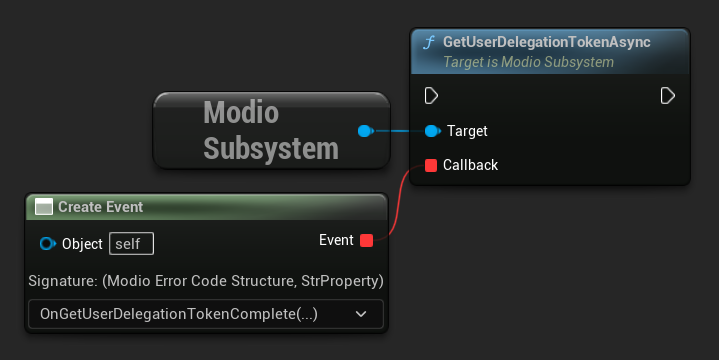

User delegation tokens can be used by a backend server for S2S (Server to Server) transactions. You can get one for the current user by calling UModioSubsystem::GetUserDelegationTokenAsync, the callback for which contains the token as an FString.

void UModioManagerSubsystem::GetUserDelegationToken()
{
   if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   {
   	Subsystem->GetUserDelegationTokenAsync(FOnGetUserDelegationTokenDelegateFast::CreateUObject(this, &UModioManagerSubsystem::OnGetUserDelegationTokenCallback));
   }
}

void UModioManagerSubsystem::OnGetUserDelegationTokenCallback(FModioErrorCode ErrorCode, FString UserDelegationToken)
{
   if (!ErrorCode)
   {
   	// Successfully got User Delegation Token
   }
}

Listing and Purchasing Premium Currency​

The Monetization premium features mod.io includes the ability to show the relevant platform store (where possible), which allows the user to purchase virtual currency, top up their wallet, and purchase Premium UGC all without leaving the game.

While Unreal provides built-in methods for accessing a given platform's storefront, not all platforms are fully supported, and as such the Component UI framework provides an alternative for unsupported platform, with the following logic:

Displaying the Native Platform Store​

The recommended method is to simply call UModioUISubsystem::RequestShowTokenPurchaseUIWithHandler which will attempt to show the appropriate Platform Native storefront via Unreal's IOnlineSubsystem. This function will return an EModioOpenStoreResult indicating whether call succeeded or not.

FailedInactive indicates that the Monetization feature is disabled in the base Mod.io plugin settings.

FailedUnsupportedPlatform means that the current platform has not implemented its native storefront in the Unreal Engine Online Subsystem, and so you will have to implement your own method for getting and displaying purchasable items. An example/template of this can be found in the ComponentUI reference design, see below for more information.

FailedUnknown is a catch-all for other error types, such as inactive online subsystems, network issues, etc, and you should check the relevant logs for any pertinent information.

Success means that the platform store UI is being displayed, and you can then listen for the Callback to handle any resulting purchases. This Callback only indicates whether the Store was opened and closed successfully, not whether the user made a purchase or not. There is also UModioUISubsystem::RequestShowTokenPurchaseUI for instances where a Callback is not needed.

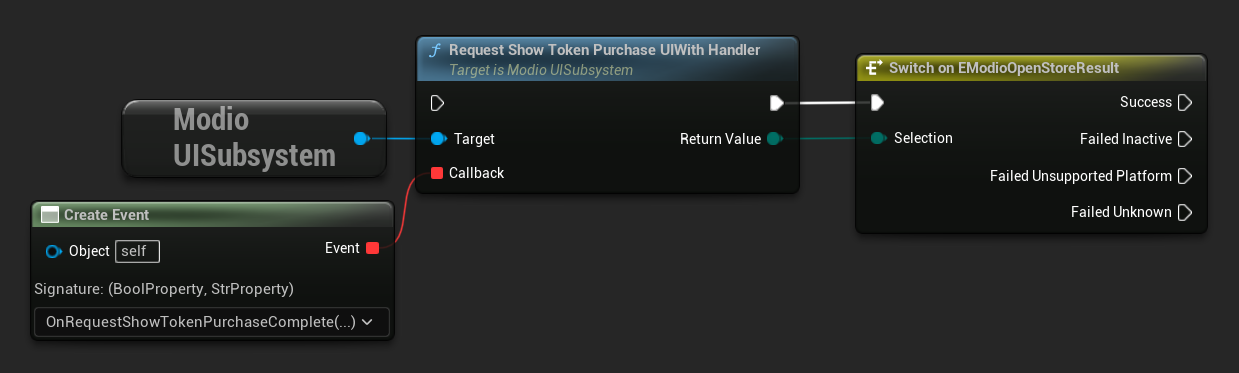

ShowPlatformStoreUI

Displaying Component UI Store Offers​

In cases where native store display is not supported, there is a provided template UI component for displaying and listing product offers within the Component UI itself.

Found at ModioComponentUI/Content/UI/Templates/Default/WBP_ModioDefaultTokenPackBrowser this Widget provides a framework and example of querying a set of product offers, displaying them, and purchasing them through the platform store.

NOTE: With either the Native or Component UI methods, the refreshing and consumption of purchased Entitlements, as well as the updating of the user's Wallet Balance, is left up to you the developer due to platform limitations.

Consuming User Entitlements​

User Entitlements are virtual currency packs/products that the user can purchase through their relevant platform store. These Entitlements can then be consumed; in the case of virtual currency, adding balance to their mod.io wallet for use purchasing UGC.

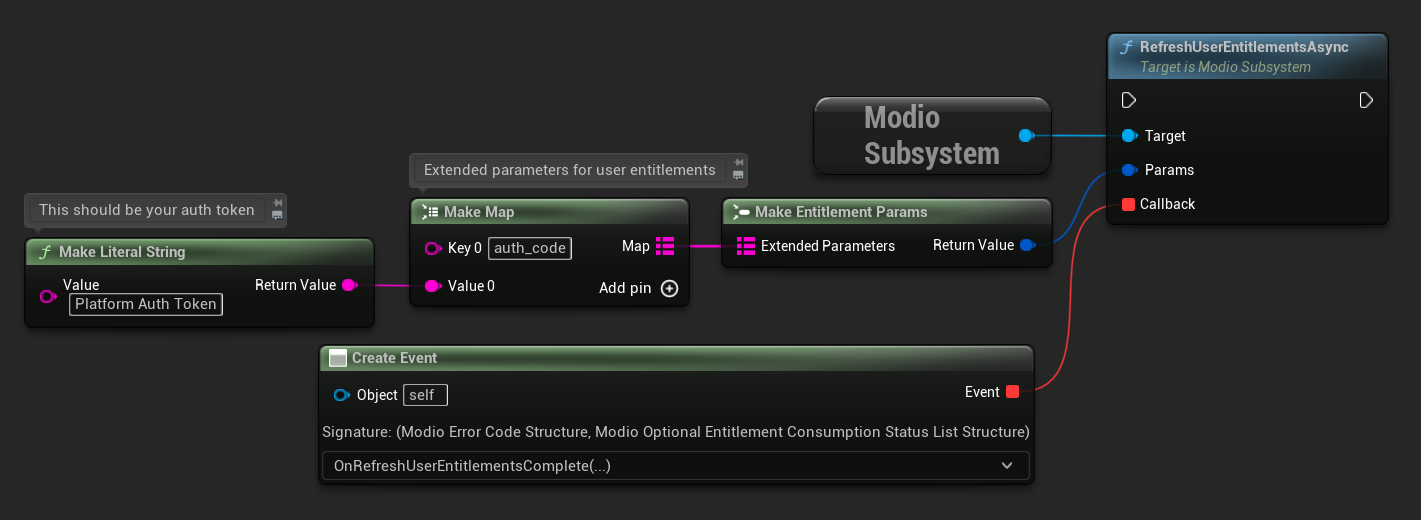

Once a user has purchased a virtual currency pack on a given store those entitlements must be consumed before they can be used. To do so you can call UModioSubsystem::RefreshUserEntitlementsAsync which takes in FModioEntitlementParams and a FOnRefreshUserEntitlementsDelegateFast as a Callback, returning an FModioErrorCode and TOptional<FModioEntitlementConsumptionStatusList> indicating the status of the user’s entitlements.

FModioEntitlementParams is to be populated with the Delegation Token received from UModioSubsystem::GetUserDelegationTokenAsync.

// Get the relevant platform authentication token prior to making this call.
void UModioManager::RefreshUserEntitlements(const FString& PlatformAuthToken)
{
	if (GEngine->GetEngineSubsystem<UModioSubsystem>())
	{
		FModioEntitlementParams Params;
		Params.ExtendedParams.Add("auth_code", PlatformAuthToken);
		GEngine->GetEngineSubsystem<UModioSubsystem>()->RefreshUserEntitlementsAsync(Params, FOnRefreshUserEntitlementsDelegateFast::CreateUObject(this, &UModioManager::OnRefreshUserEntitlementsCallback));
	}
}

void UModioManager::OnRefreshUserEntitlementsCallback(FModioErrorCode ErrorCode, TOptional<FModioEntitlementConsumptionStatusList> ConsumptionStatusList)
{
	if (ErrorCode == false)
	{
		// Successfully refreshed entitlements.
	}
}

After entitlements are refreshed successfully any classes properly implementing the ModioUIWalletBalanceUpdatedEventReceiver interface will receive the updated balance.
