Adding UGC

There are a few ways to allow users to add their UGC creations to your game. You can either let users build and submit UGC from inside your game, or you could take advantage of Unreal Engine's built-in tooling.

This guide covers:

• In-game UGC submissions
• Unreal Engine Creation & Upload Tool

In-game UGC submissions

Submitting UGC from inside your game and making it visible to other players involves two steps:

1. Submitting new UGC
2. Submitting the data of the UGC (aka "the mod file")

These steps are outlined below. UGC can also be edited after submission, which you can learn via the API Reference.

Submitting new UGC

To submit a piece of UGC, you must first create a mod handle using GetModCreationHandle, and use that handle when calling SubmitNewModAsync. Note that newly created UGC will remain hidden until a mod file is added in the next step.

Blueprint

C++

void UModioManagerSubsystem::SubmitNewMod()
{
   if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   {
   	FModioModCreationHandle Handle = Subsystem->GetModCreationHandle();

   	FModioCreateModParams Params;
   	Params.Name = TEXT("My Amazing Mod");
   	Params.Description = TEXT("This mod does amazing things");
   	Params.PathToLogoFile = TEXT("C:\\path\\to\\image.png");

   	Subsystem->SubmitNewModAsync(Handle, Params, FOnSubmitNewModDelegateFast::CreateUObject(this, &UModioManagerSubsystem::OnSubmitNewModComplete));
   }
}

void UModioManagerSubsystem::OnSubmitNewModComplete(FModioErrorCode ErrorCode, TOptional<FModioModID> ModId)
{
   if (!ErrorCode)
   {
   	// Mod was successfully submitted
   	// We can now call SubmitNewModFileForMod with this ModId
   }
}

Submitting the data for the UGC

Once you have successfully submitted a piece of UGC, you can submit a mod file for that UGC using SubmitNewModFileForMod. When you submit a mod file, you pass a ModioCreateModFileParams containing the directory containing all the files that you want to submit. The plugin will compress this folder into a .zip file and upload it as the active version of the UGC.

In the future, if the mod is updated and requires a new mod file, SubmitNewModFileForMod can be called again. The most recent mod file uploaded by SubmitNewModFileForMod will be set as the active version.

note

There is no callback for SubmitNewModFileForMod; you’ll be notified of the completed upload by your mod management callback.

Blueprint

After the callback for submitting UGC has completed, you can get the Mod Id to use for file submission.

C++

void UModioManagerSubsystem::SubmitNewModFile(FModioModID ModId)
{
   if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   {
   	FModioCreateModFileParams Params;
   	Params.PathToModRootDirectory = TEXT("C:\\path\\to\\mod-folder");
   	Subsystem->SubmitNewModFileForMod(ModId, Params);
   }
}

Mod Creation & Upload Tool

The mod.io Unreal Engine plugin includes an integrated editor module that provides a comprehensive Content Creation and Upload Tool for seamless mod management.

Editor-specific Plugin Modules

Module Name	Description	Module Type
ModioEditor	Editor details customization and asset factories for UE content creation and upload tool classes	Editor

Opening the Tool

To access the tool, click the mod.io icon in the Unreal Engine toolbar to display the dropdown menu, then select Create & Upload. Upon launch, the tool may require authentication with mod.io. Click the "Login to Modio" button and follow the authentication process to proceed.

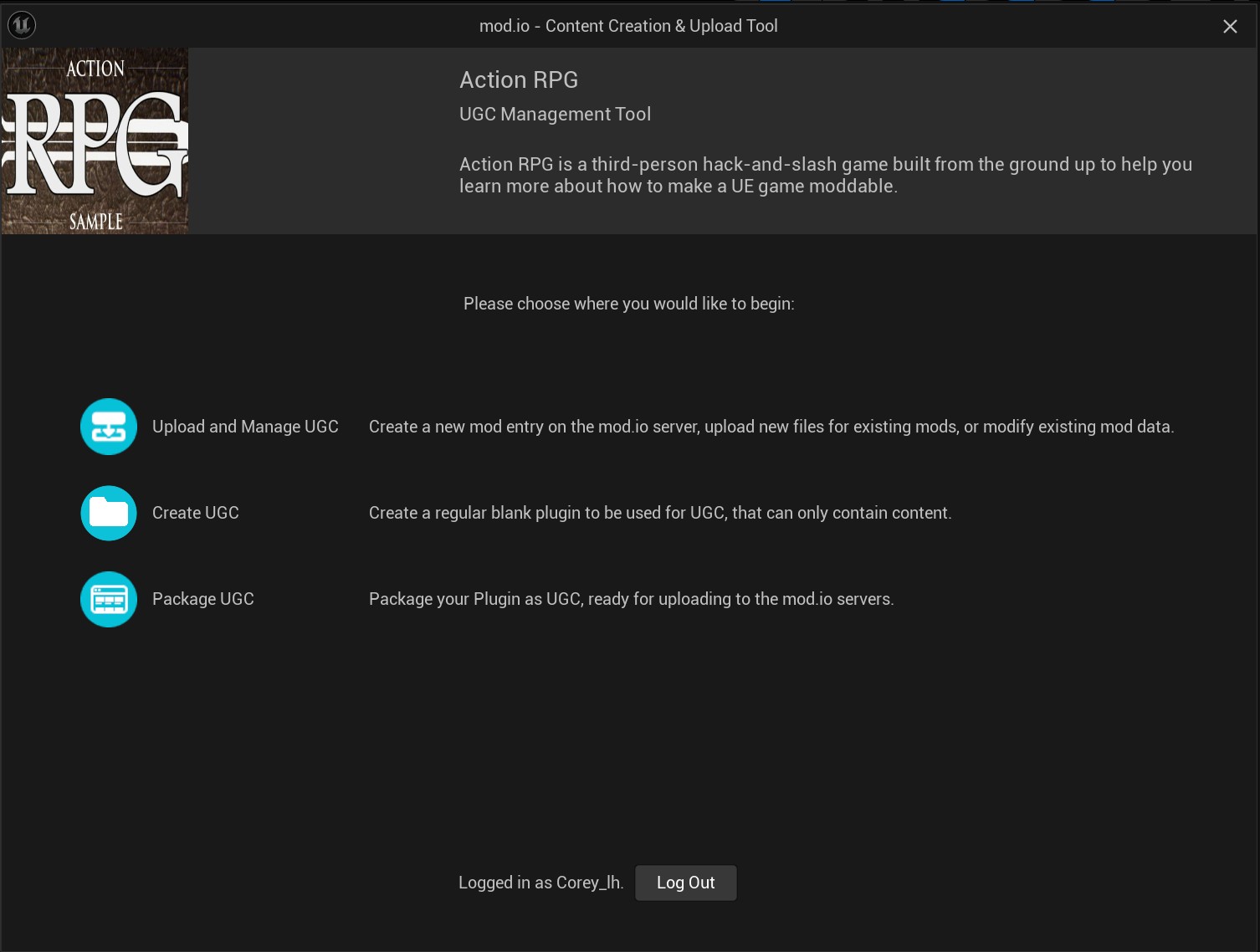

Managing UGC

After successful authentication, you will have access to the full suite of User-Generated Content (UGC) management functions, including Upload, Manage, Create, and Package capabilities.

Upload and Manage UGC

This section provides tools to edit existing mods or create new mod profiles.

Create Mod

The Add New Mod Listing function enables you to create a new mod profile.

Edit Mods

The Edit Mod Listing function allows you to modify existing mods, upload mod files, or cook new mod files.

Creating a New Mod

The plugin streamlines the mod creation process directly within Unreal Engine with the following workflow:

Create Mod

1. Click Add New Mod Listing and complete the following required fields:

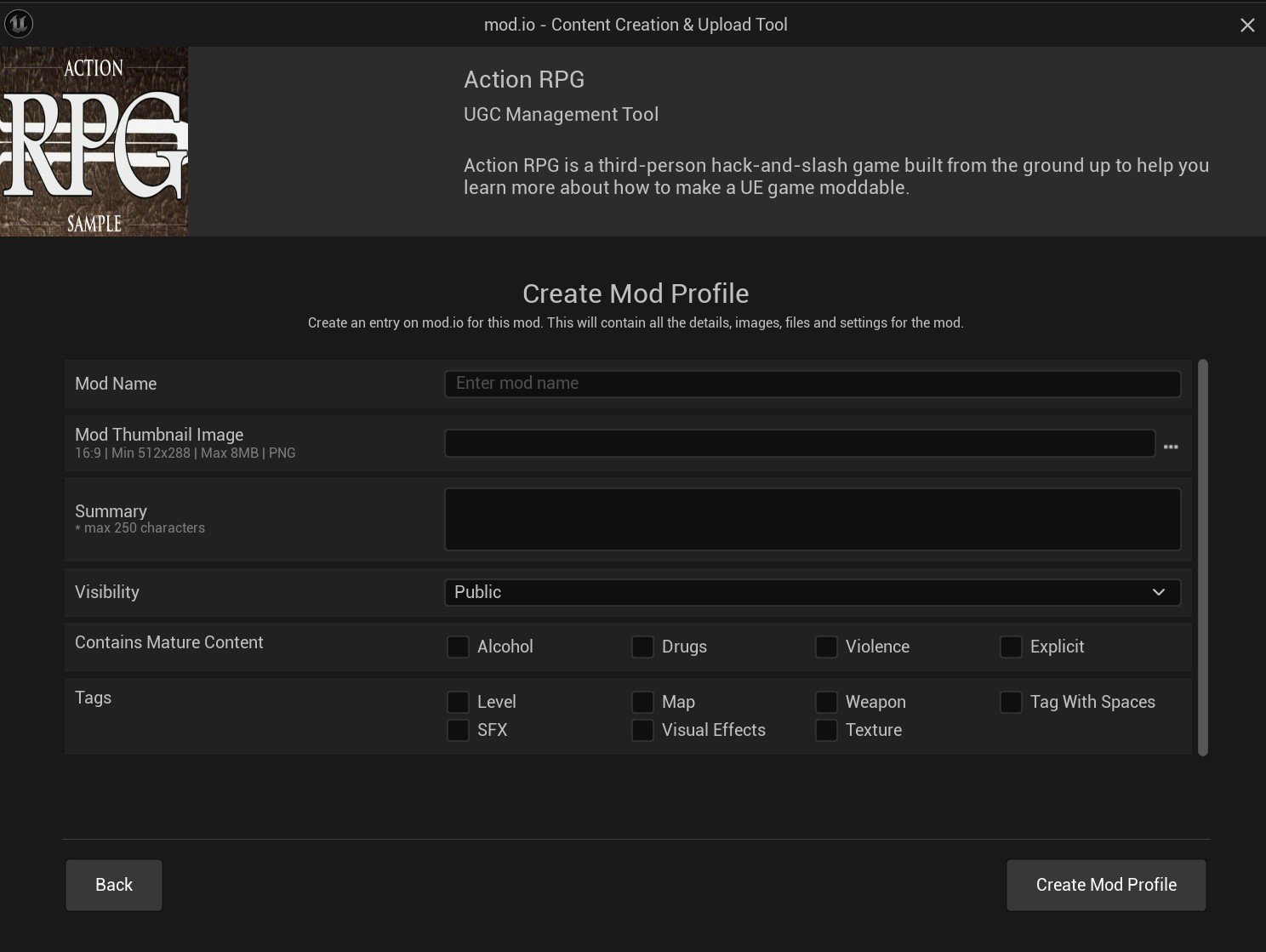

Create Mod Properties

Field	Description
Path to Logo File	Browse to select a .png file for your mod logo
Name	The name of your mod
Summary	A concise description of your mod
Visibility	Set the mod's visibility status (Public or Hidden)
Contains Mature Content	Specify any mature content categories included in your mod
Tags	Select relevant tags that accurately categorize your mod

2. After completing all required fields, click Create Mod Profile to finalize your mod creation.

3. Upon successful submission, you will be returned to the mod browser where you can manage your newly created mod.

Editing Existing Mods

The plugin provides a straightforward interface for modifying existing mods directly within Unreal Engine:

Edit Mods

1. Click Edit Mods to display a list of your available mods.
2. Select a mod from the list by clicking on it.

Browse Mods

Column	Description
Name	The mod's display name
Description	Brief description of the mod
Created date	Date when the mod was initially created
Moderation Status	Current moderation state of the mod
Visibility	Current visibility status (Public or Hidden)

3. After selecting a mod, click Edit Mod to access the editing interface.

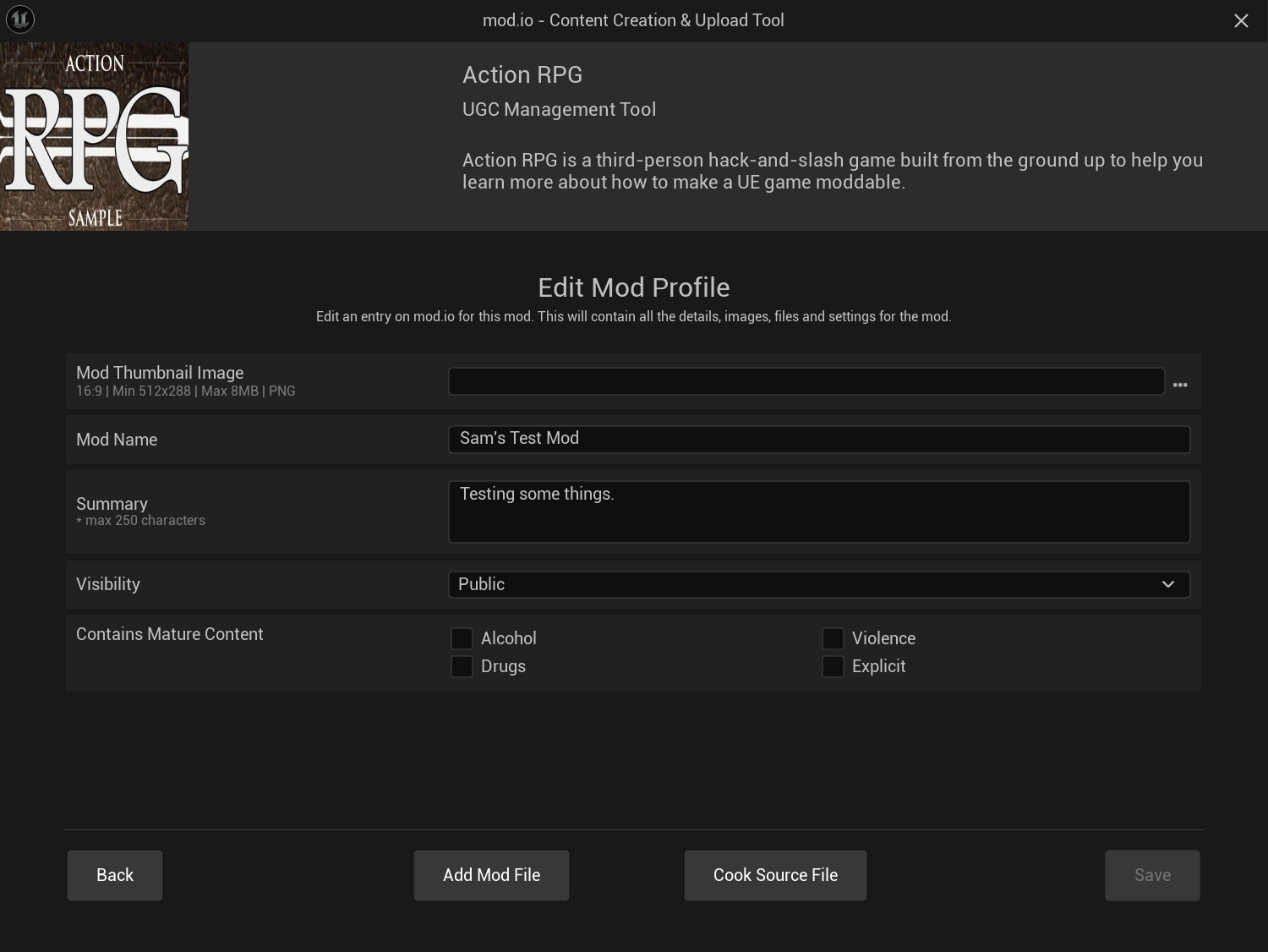

Edit Mod Properties

Field	Description
Path to Logo File	Browse to select a new .png file for your mod logo
Name	Edit the mod's display name
Summary	Update the mod's description
Visibility	Adjust the mod's visibility (Public or Hidden)
Contains Mature Content	Modify mature content categorization as needed

4. Make your desired changes to the mod properties, then click Save to apply your modifications.

Uploading a New Modfile

To upload content for your mod, you must specify a workspace directory and complete the following steps:

1. Click New Modfile

2. Complete the required fields:

Note: You may receive an error dialog if the game does not support your selected platform or if the game is locked.

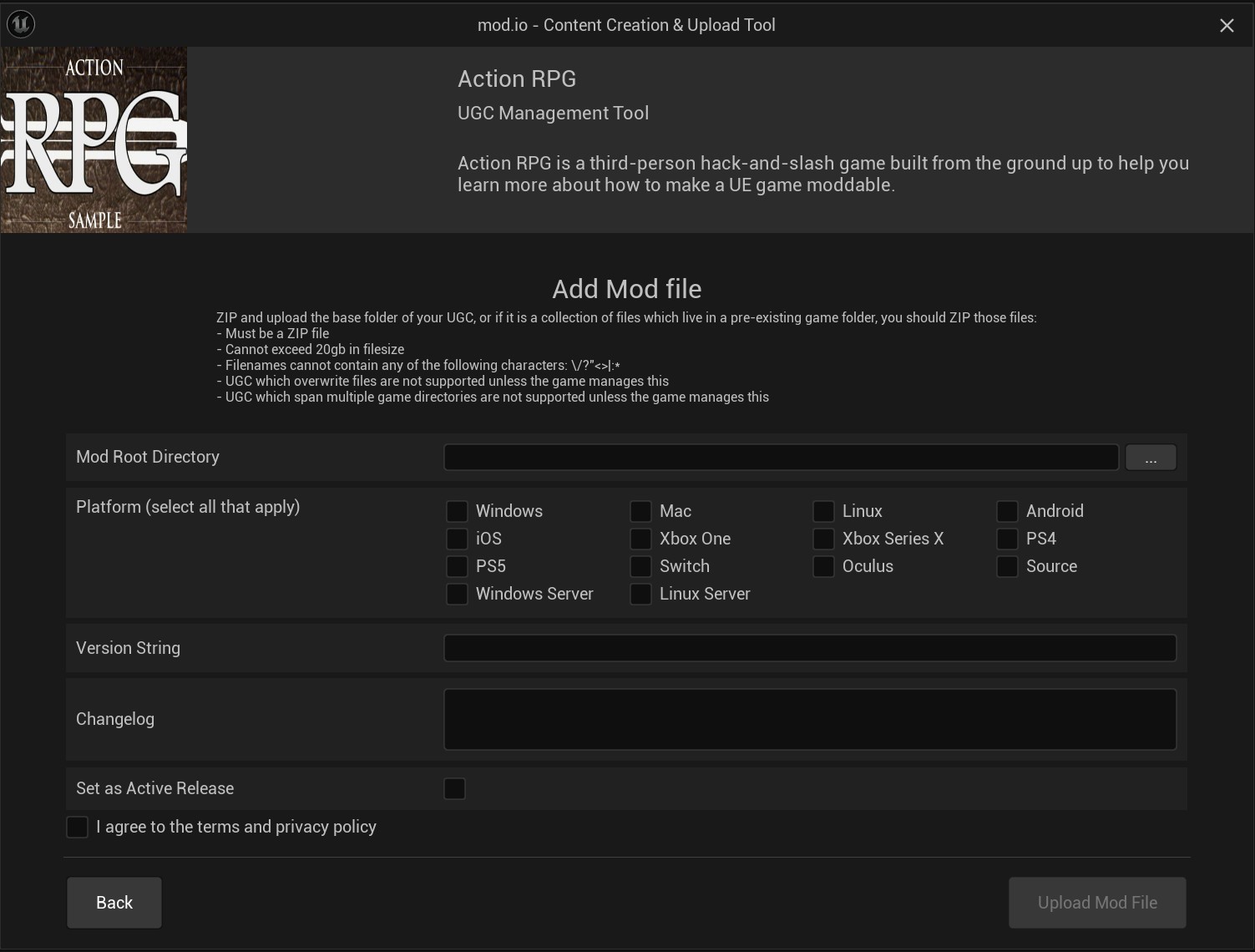

Upload Mod File

Field	Description
Mod Root Directory	Specify the path to your workspace directory containing mod assets
Platform	Select the target platform(s) for this mod file
Version String	Provide a version identifier for this release
Changelog	Document changes or additions in this version
Set as Active Release	Determine whether this upload should be set as the current active release

3. Review and accept the terms and privacy policy by checking the acknowledgment box.

4. Click Upload Mod File to begin the upload process.

5. A progress indicator will display the status as your workspace directory is compressed and uploaded along with the provided metadata.

Mod File Upload Completion

After successful upload, your mod file will be available on the mod.io platform.

Cooking a New Source file

To cook a new source file for your mod, follow these steps:

1. Click New Source File.

2. Complete the required fields:

Note: You may receive an error dialog if the game does not support your selected platform or if the game is locked.

Cook Source File

Field	Description
Mod Root Directory	Specify the path to your workspace directory containing mod assets
Platform	Select the target platform(s) for this mod file
Version String	Provide a version identifier for this release
Changelog	Document changes or additions in this version

3. Review and accept the terms and privacy policy by checking the acknowledgment box.

4. Click Cook Source File to begin the cooking process.

Source File Cooking Completion

After successful cooking, your new source file will be available for use in your mod.

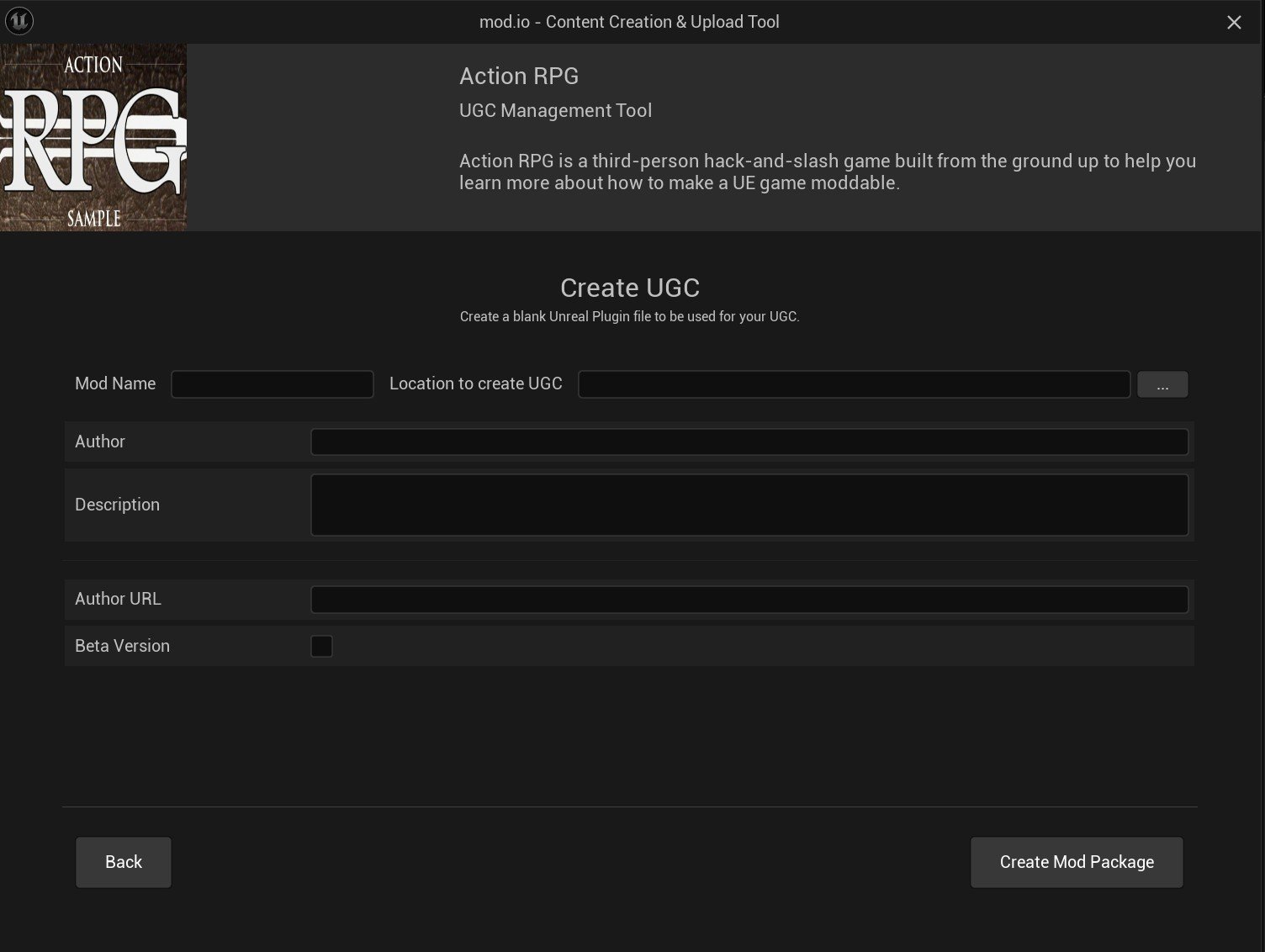

Creating UGC

This section enables you to create new User-Generated Content for your game using predefined templates.

Field	Description
Mod Name	Specify a name for your User-Generated Content
Location to create UGC	Select the directory where UGC files will be created
Author	Provide the name of the content creator
Description	Enter a detailed description of the UGC
Author URL	Optionally include a URL to the author's website or profile
Beta Version	Specify if this content is in beta stage

Packaging UGC

This interface allows you to compile your created plugins for distribution across multiple platforms.

Field	Description
Select plugin to Package	Choose the plugin you want to package from the available options
Platform	Select the target platform for this package
Package output path	Specify the directory where the packaged content will be saved
