Getting Started

The ModioUGC plugin is composed of two core components: UUGCSubsystem, which handles UGC discovery and loading, and IUGCProvider, which interacts with UGC providers to determine availability and locate UGC packages.

UGC Subsystem​

The UGC Subsystem is the central system that powers the ModioUGC plugin. Its lifetime is automatically managed by the engine, offering a convenient and reliable entry point for interacting with the plugin's functionality.

Responsibilities​

The UGC Subsystem is broadly responsible for:

  • Managing the plugin lifecycle (initialization and teardown)
  • Setting and initializing UGC provider(s)
  • Discovering and loading UGC packages
  • Refreshing UGC availability on demand

Key Methods​

The subsystem provides the following key methods:

  • SetUGCProvider
  • InitializeUGCProvider
  • RefreshUGC
  • UnloadAllUGCPackages

These methods are used to configure and control the discovery and loading of UGC. Additional helper methods are also available for interacting with other aspects of the system.

note

The UGC Subsystem itself is managed automatically by the engine, so manual instantiation is not required.

UGC Provider​

The IUGCProvider interface is responsible for supplying information about the UGC content to be mounted. Depending on your game's architecture, you may use a single provider or aggregate multiple providers into one.

The core method, GetInstalledUGCPaths, defines the directories the system should scan to discover UGC. These paths must point to locations containing a .uplugin file alongside its associated UGC files (e.g., .pak, .ucas, .utoc) within a Content directory.

Example​

If your .uplugin file is located at C:\MyUGCFolder\RedSpaceship.uplugin and the UGC files are located in C:\MyUGCFolder\Content\Paks\Windows\, then the path returned by GetInstalledUGCPaths should be C:\MyUGCFolder.

Included Providers​

The plugin includes two example implementations:

  • UModioUGCProvider
    This is the default provider. It can automatically initialize the mod.io service (if enabled in the ModioUGC settings) and returns installed UGC paths from the mod.io user installation directory using GetInstalledUGCPaths.

  • USideLoadUGCProvider
    This sample provider returns a specific directory path for sideloading UGC. It's useful for testing during development without needing to initialize or authenticate with mod.io.

note

You can implement your own custom provider by inheriting from IUGCProvider and overriding the GetInstalledUGCPaths method to suit your game's content workflow.

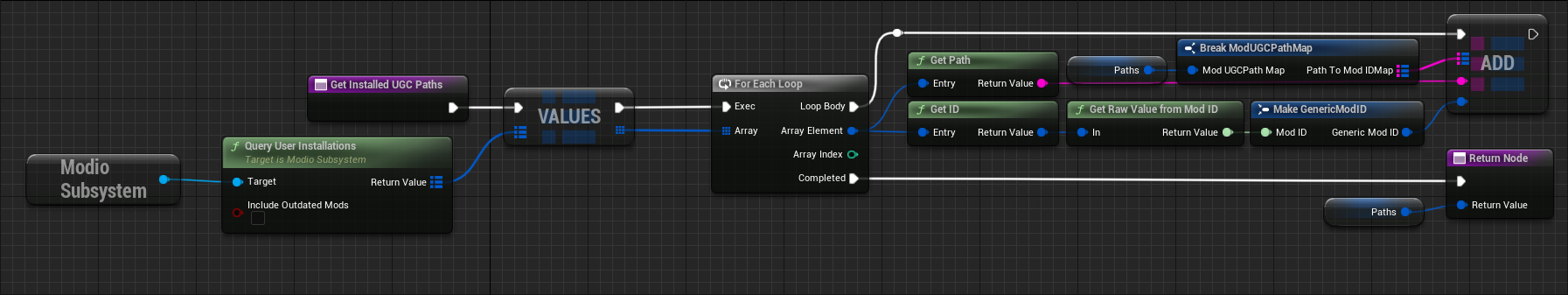

Implement GetInstalledUGCPaths to return the UGC path representing the packaged UGC. For example the mod.io user installations:

FModUGCPathMap UMyUGCProvider::GetInstalledUGCPaths_Implementation()
{
   TMap<FString, FGenericModID> UGCPathsToModIDs;
   if (UModioSubsystem* Subsystem = GEngine->GetEngineSubsystem<UModioSubsystem>())
   {
   	TMap<FModioModID, FModioModCollectionEntry> InstalledMods = Subsystem->QueryUserInstallations(true);
   	for (const TPair<FModioModID, FModioModCollectionEntry>& Mod : InstalledMods)
   	{
   		UGCPathsToModIDs.Add(Mod.Value.GetPath(), FGenericModID(GetUnderlyingValue(Mod.Key)));
   	}
   }
   return FModUGCPathMap(MoveTemp(UGCPathsToModIDs));
}

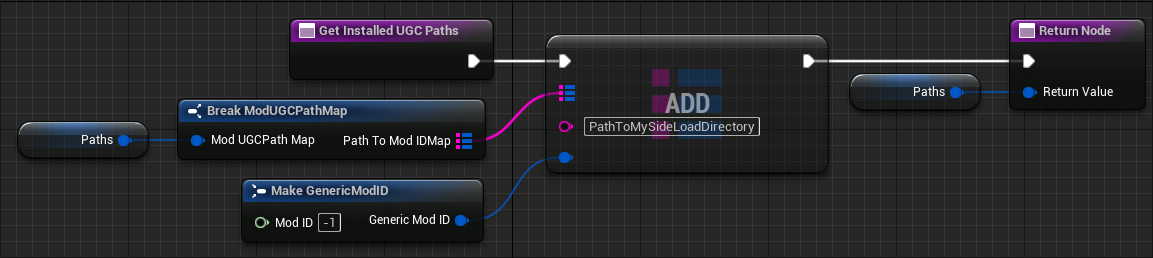

Or a side load directory, which can be useful during development:

FModUGCPathMap UMyUGCProvider::GetInstalledUGCPaths_Implementation()
{
   TMap<FString, FGenericModID> UGCPathsToModIDs;

   // Scan folder for mods
   const FString BaseModsPath = TEXT("PathToMySideLoadDirectory");
   const FString ModsPathSearch = BaseModsPath / TEXT("*");

   IFileManager& FileManager = IFileManager::Get();
   TArray<FString> OutFolders;
   FileManager.FindFiles(OutFolders, *ModsPathSearch, false, true);

   for (const FString& Folder : OutFolders)
   {
   	UGCPathsToModIDs.Add(BaseModsPath / Folder, FGenericModID());
   }

   return FModUGCPathMap(MoveTemp(UGCPathsToModIDs));
}

Initialization​

Manual​

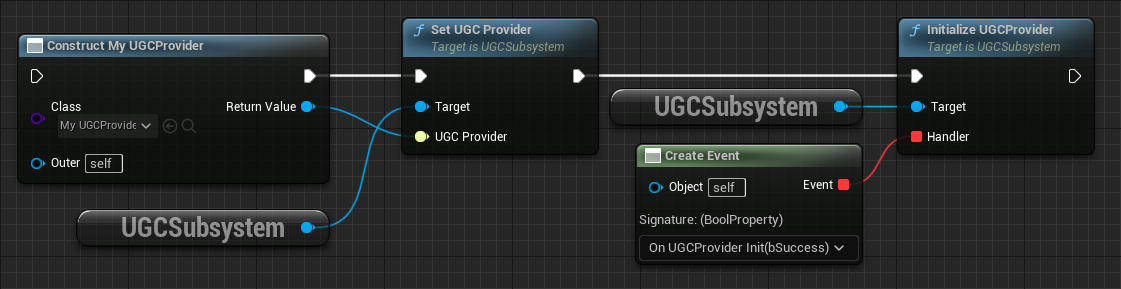

The general expectation is your game will handle the initialization of ModioUGC providers when appropriate.

    UUGCSubsystem* UGCSubsystem = GEngine->GetEngineSubsystem<UUGCSubsystem>();
    if (UGCSubsystem)
    {
        UGCSubsystem->SetUGCProvider(NewObject<UMyCustomGame_UGCProvider>(this));

        FOnUGCProviderInitializedDelegate Handler;
        // Optionally bind a callback to handle the success/failure of the provider initialization
        Handler.BindDynamic(this, &UMyCustomGameSubsystem::OnUGCProviderInitialized);
        UGCSubsystem->InitializeUGCProvider(Handler);
    }

Automatic​

There is also an option to automatically perform initialization. This will create and set a new UModioUGCProvider object as soon as the UGC Subsystem initializes.

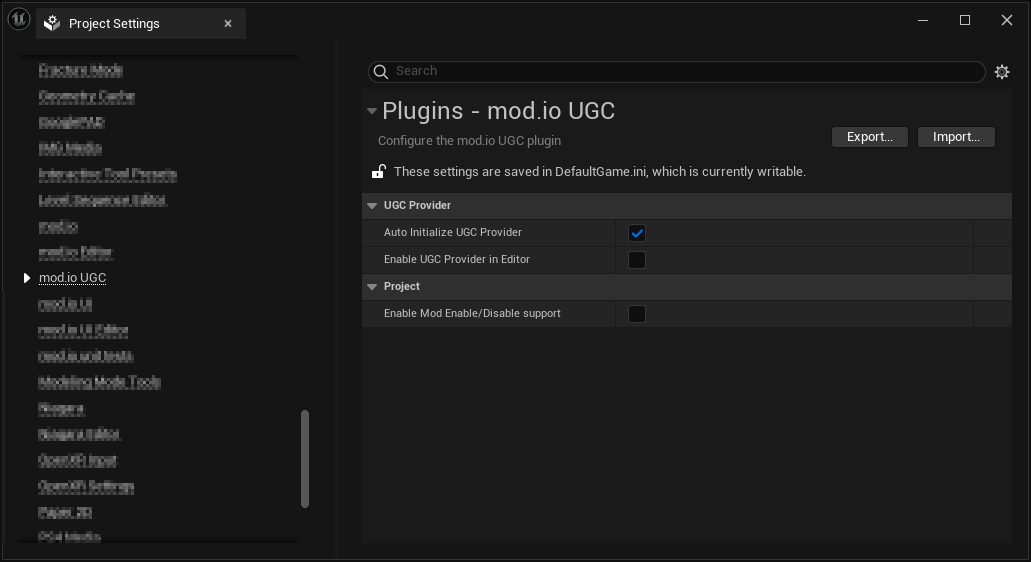

Navigate to Edit > Project Settings > Plugins > mod.io UGC and check the Auto Initialize UGC Provider option. Auto Initialize UGC Provider

Mounting and registering UGC assets​

Once both the UGC Subsystem and your UGC Provider have been initialized, the system will automatically attempt to discover UGC when the Unreal Asset Manager is spawned. If the Asset Manager is already available, discovery begins immediately.

During this step, the system:

  • Uses the paths provided by your IUGCProvider
  • Discovers valid UGC packages
  • Finds and mounts the contained .pak files

To trigger discovery manually, you can call RefreshUGC on the UGC Subsystem. This will re-scan for new UGC and unload any previously mounted UGC that is no longer available. This is useful, for example, after installing or uninstalling content via the UGC browser.

Once UGC has been successfully discovered and mounted, you are free to access the assets it contains.

Accessing Assets​

Once a UGC package is successfully mounted, you can access the assets within it using the following functions from the UGCSubsystem:

  • EnumerateAllUGCPackages: This function invokes the provided functor on every UGC package in the registry. It is the only method to directly access the UGC packages.
  • GetUGCPackageByModID: This function retrieves a UGC package by its mod ID.

Additionally, the assets are now registered with the AssetManager and appended to the AssetRegistry, which allows you to query them based on asset type. For instance, if your UGC includes maps, you can easily find them by querying for map assets.

Using the Asset Manager​

To query assets (for example maps) through the AssetManager, use the following approach:

	TArray<TSoftObjectPtr<UObject>> MapList;
	UAssetManager& AssetManager = UAssetManager::Get();
	TArray<FPrimaryAssetId> OutAssetIDs;
	AssetManager.GetPrimaryAssetIdList(FPrimaryAssetType("Map"), OutAssetIDs);
	for (FPrimaryAssetId AssetID : OutAssetIDs)
	{
		FAssetData AssetData;
		AssetManager.GetPrimaryAssetData(AssetID, AssetData);

		if (AssetData.IsValid())
		{
			MapList.Add(TSoftObjectPtr<UObject>(AssetData.GetAsset()));
		}
	}

Using the Asset Registry​

Alternatively, you can use the AssetRegistry like so:

	TArray<TSoftObjectPtr<UObject>> MapList;
	FAssetRegistryModule& AssetRegistryModule =
		FModuleManager::LoadModuleChecked<FAssetRegistryModule>("AssetRegistry");
	IAssetRegistry& AssetRegistry = AssetRegistryModule.Get();

	FARFilter ARFilter;
	TArray<FAssetData> AssetList;
	ARFilter.ClassPaths.Add(UWorld::StaticClass()->GetClassPathName());
	ARFilter.bIncludeOnlyOnDiskAssets = true; // This is important, otherwise UGC assets will not be found
    // Any other filter requirements

	FARCompiledFilter CompiledFilter;
	IAssetRegistry::Get()->CompileFilter(ARFilter, CompiledFilter);

	TArray<FAssetData> AssetDataArray;
	AssetRegistry.GetAssets(ARFilter, AssetDataArray);

	for (const FAssetData& AssetData : AssetDataArray)
	{
		MapList.Add(TSoftObjectPtr<UObject>(AssetData.GetAsset()));
	}

Creating UGC​

The ModioUGC plugin includes additional editor tooling to facilitate the creation and packaging of UGC content for deployment.

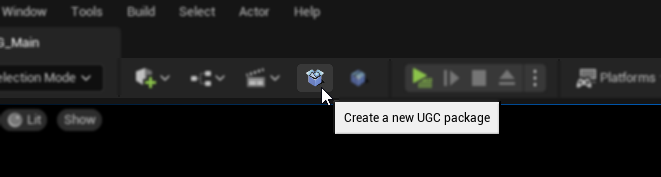

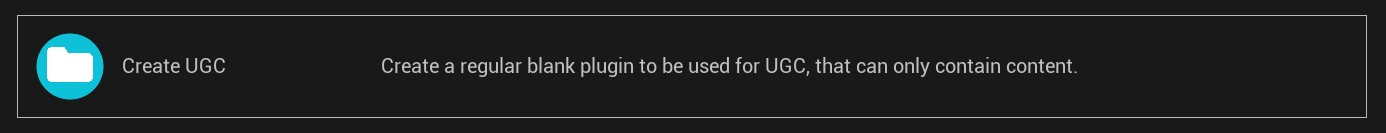

Clicking the Create Mod button in the editor's top toolbar opens a wizard for creating a content-only UGC plugin.

Creating a new UGC

This process generates a new plugin structure for your UGC package. When creating content, avoid dependencies on engine assets, as this can cause issues during packaging.

After the UGC is created, content can be added by creating new assets or importing existing ones. This process is typically performed by UGC creators using the Unreal Editor or your provided mod kit, etc.

Required Metadata​

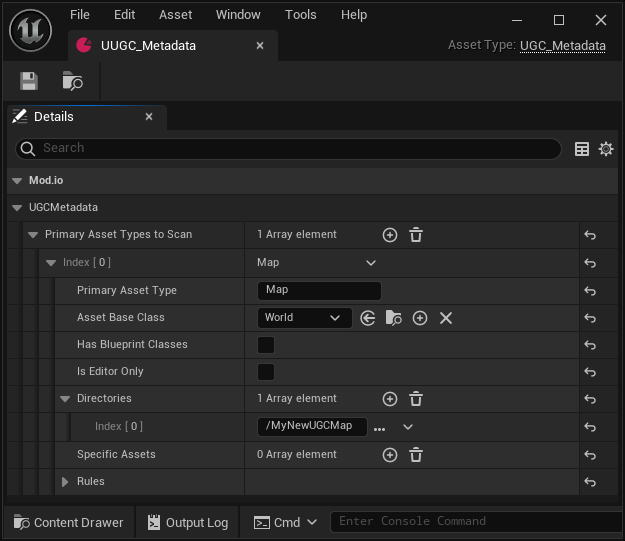

Each UGC package must include a UUGC_Metadata data asset, which is automatically generated during the creation process. This metadata defines:

  • The primary asset type
  • The base asset class
  • The content path, usually set to the name of your UGC folder (since all assets should reside within it)

For example, if you're creating a new UGC map, it should match a defined primary asset type in your project's AssetManager settings to ensure it can be discovered and loaded correctly.

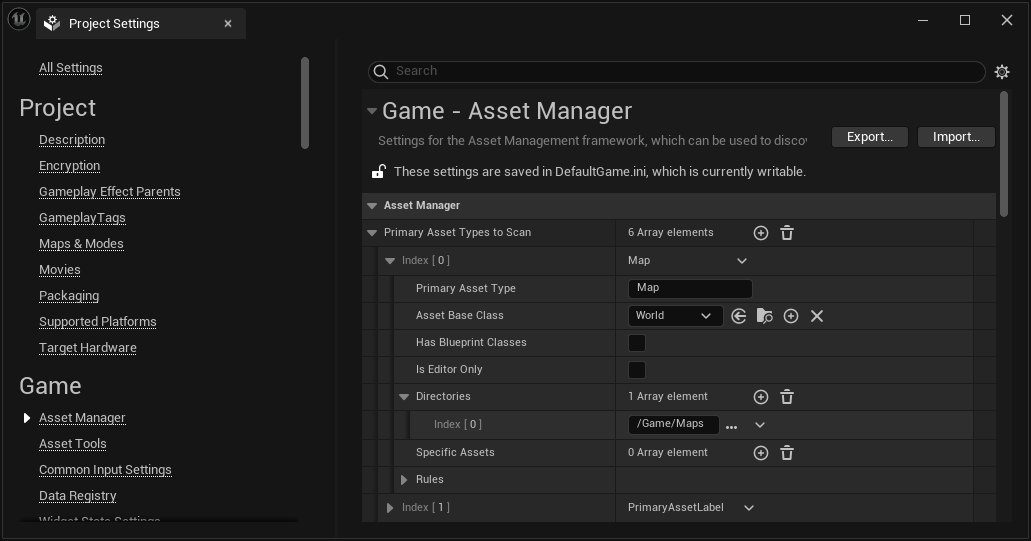

UGC Metadata data asset Asset Manager primary asset types

Packaging UGC​

The ModioUGC plugin provides a second editor tool for packaging UGC content as a cooked DLC plugin for a selected platform.

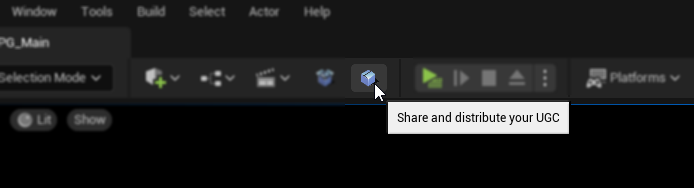

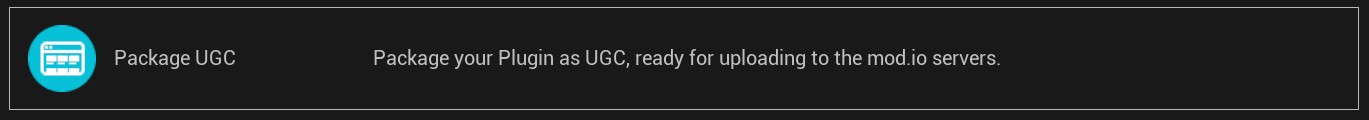

Clicking the Package Mod button in the editor's top toolbar opens a dialog where you can select the UGC plugin and the target platform for packaging.

Packaging a UGC

Once the packaging process is complete, a folder is generated containing:

  • The .uplugin file
  • A Content directory with:
    • The .pak file
    • (If Io Store is enabled) .ucas and .utoc files

This folder represents the packaged UGC and is ready to be mounted by the ModioUGC runtime.

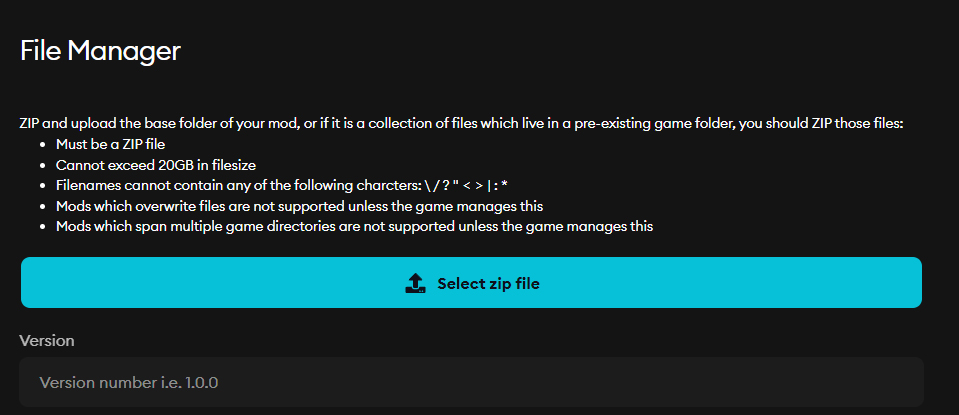

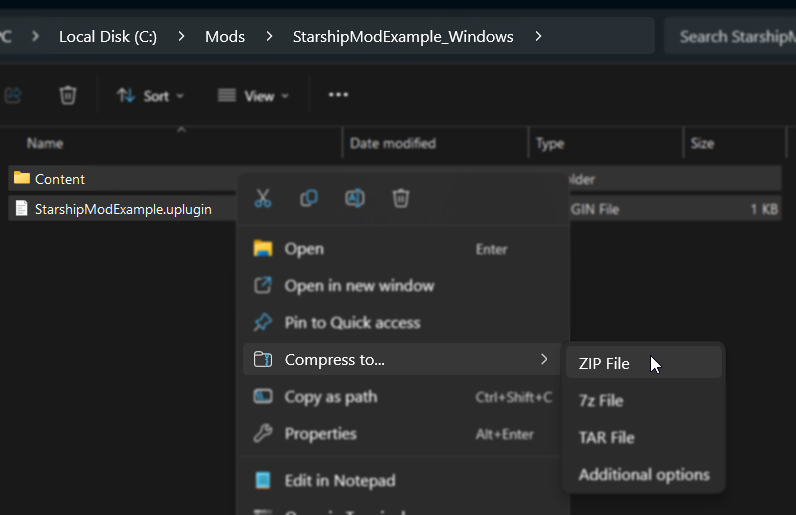

You can also compress this folder into a .zip archive to upload to mod.io.

Compressing the UGC

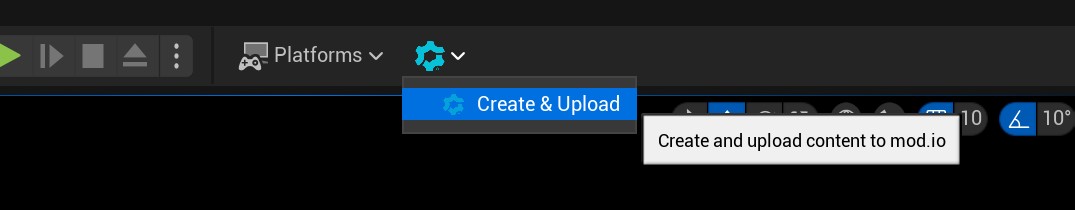

Uploading the UGC

In-editor testing​

Testing can also be performed in-editor, although it is disabled by default. To enable it:

  1. Navigate to Edit > Project Settings > Engine -> Cooker and check the Allow Cooked Content In The Editor option.

    Allowing Cooked Content In The Editor

  2. Navigate to Edit > Project Settings > Plugins > UGC Settings and check the Enable UGC Provider in Editor option.

    Enabling UGC Provider in Editor

  3. Open up your DefaultEngine.ini config file and add allowing unversioned content in editor to the Cooker Settings"

[/Script/UnrealEd.CookerSettings]
s.AllowUnversionedContentInEditor=True
note

A current limitation for in-editor testing requires the project to have Io Store disabled both when creating the UGC, as well as when attempting to load it.

To disable the Io Store, navigate to Edit > Project Settings > Packaging and set the Use Io Store option to False.

Disabling the Io Store

Also, please note that it's not possible to run the project with UGC packaged with Io Store enabled, and vice versa. UGC must be packaged with the same Io Store setting as the project.
