Template UI Layouts

Now you have familiarized yourself with the Template UI Functionality guide, here's a brief breakdown of the main layouts and widgets that make up Template UI, and how to modify them to suit your needs.

This guide covers:

• Layouts and widgets
• File locations
• Modifying layouts

Layouts and widgets

Customization

For a comprehensive look at creating and substituting your own components into Template UI, see Creating Custom Component and Substituting Components

WBP_ModioModBrowser

This is the main layout for the mod browser. The layouts are built to be navigable on both keyboard & mouse and gamepad. The layout will scale responsively to different screen aspect ratios.


WBP_ModioDefaultModTile

The mod tile that will populate the browser. Their scale and padding in the browser can be set via the WBP_ModioDefaultModTile layout in the WBP_ModioModBrowser layout.

WBP_ModioModDetailsDialog

While the thumbnail gallery should be kept at a consistent aspect ratio of 16:9, the rest of the layout & widgets can be scaled to suit your current layout.

WBP_ModioFilterPanel

The filter panel uses both radio and check boxes for filter and sort options, broken down into sub-categories that can be expanded or collapsed.

File locations

The main working layout for the mod browser is WBP_ModioModBrowser, which can be found under ModioComponentUI/Content/UI/Templates/Default.

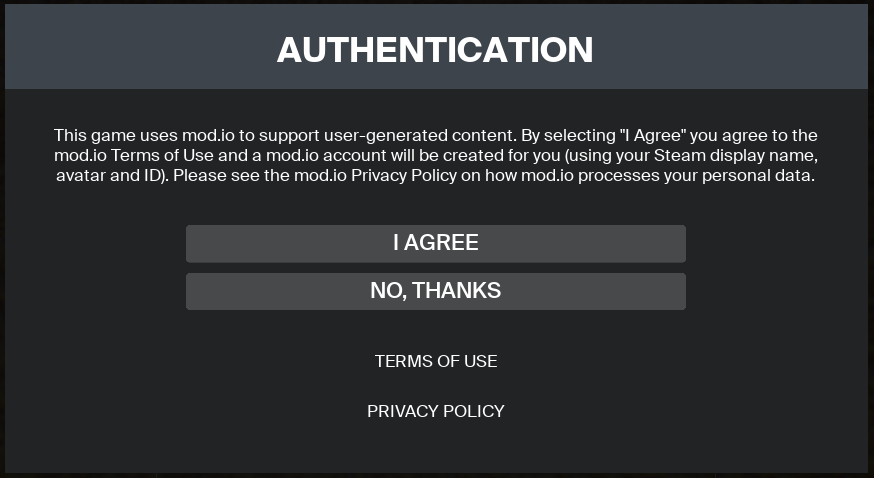

Generally, layouts and elements which have a specific use such as confirmation modals, storage widgets, unique buttons etc. can be found in the UI/Templates folder, and general core elements like buttons, modals, image galleries, etc can be found in the UI/Components folder.

Modifying layouts

A UI style element is applied to a range of widgets, and allows for colours assigned to their states (static, highlighted, selected, premium, etc) to be called from a data table called DT_UIColors.


WBP_ModioDefaultModTile

Border Colour	The outline on highlighted mod tiles
Background Color	The base colour behind the mod name and details
Text Color	Colour of the mod name & details
Price Text Color	Colour of the Price tag on Premium Mods



WBP_ModioDefaultButton and WBP_ModioDefaultIconButton

Most buttons will use these as a parent, so the following UI settings will be available to their children:

Button Color	Color of the base of the button
Icon Type	Setting the icon sprite for the IconButton variant
Text Color	Color of the icon text
Text Size	Font size of the icon text
Font Properties	Font Family, style, size, spacing, skew, material, and outline
Text Alignment	Left, right, centre, or fill
Text Transform Settings	Upper case, lower case, or none



WBP_ModioModBrowser

Inside WBP_ModioModBrowser, you can find a modified grid layout named ModTileView. This is populated with WBP_ModioDefaultModTile. The ModTileView layout controls the size and padding of the tiles.

The size of the thumbnail is locked to a 16:9 aspect ratio — while the mod tiles can be resized to suit your needs, by default they will need to work around this restriction.
